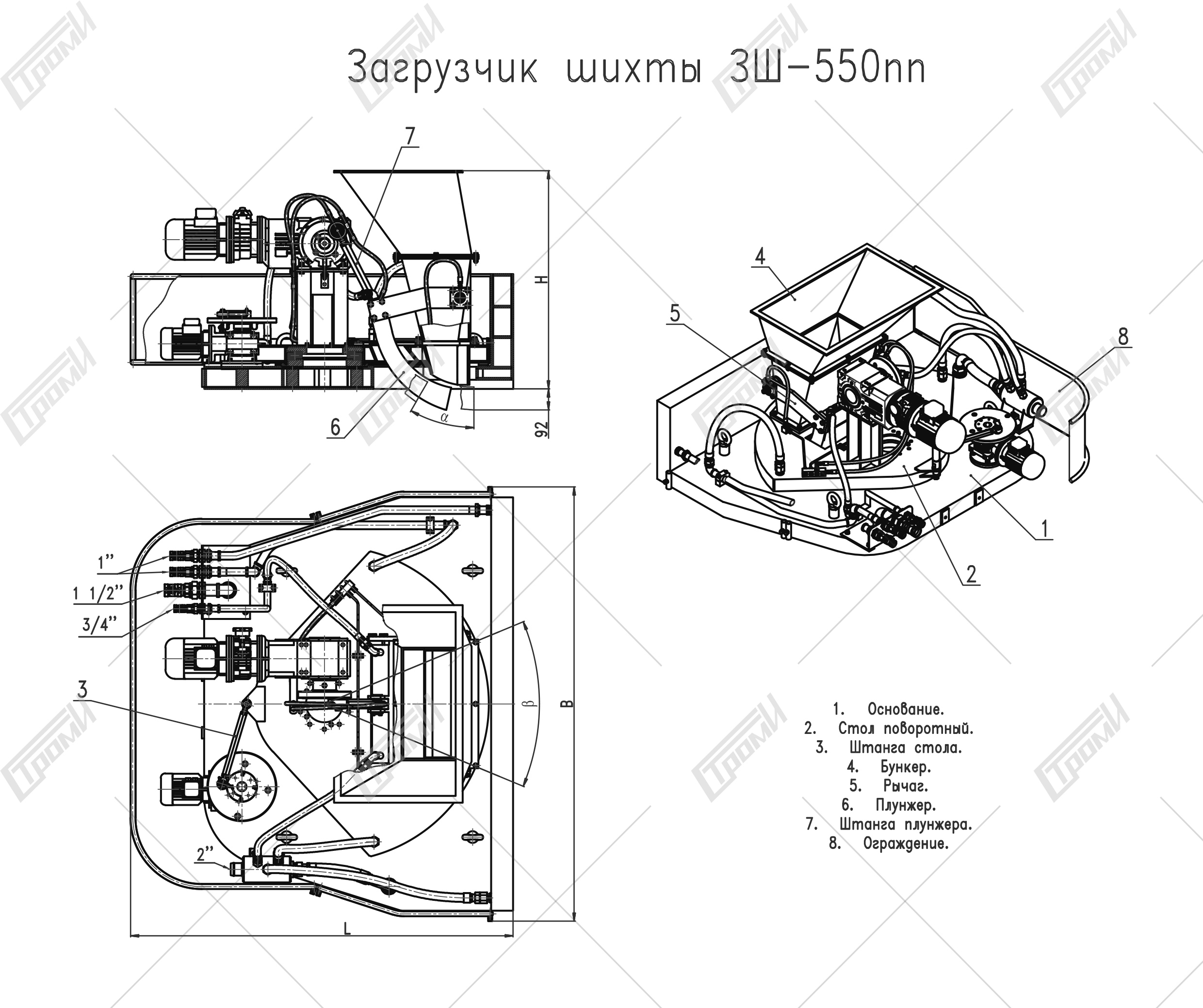

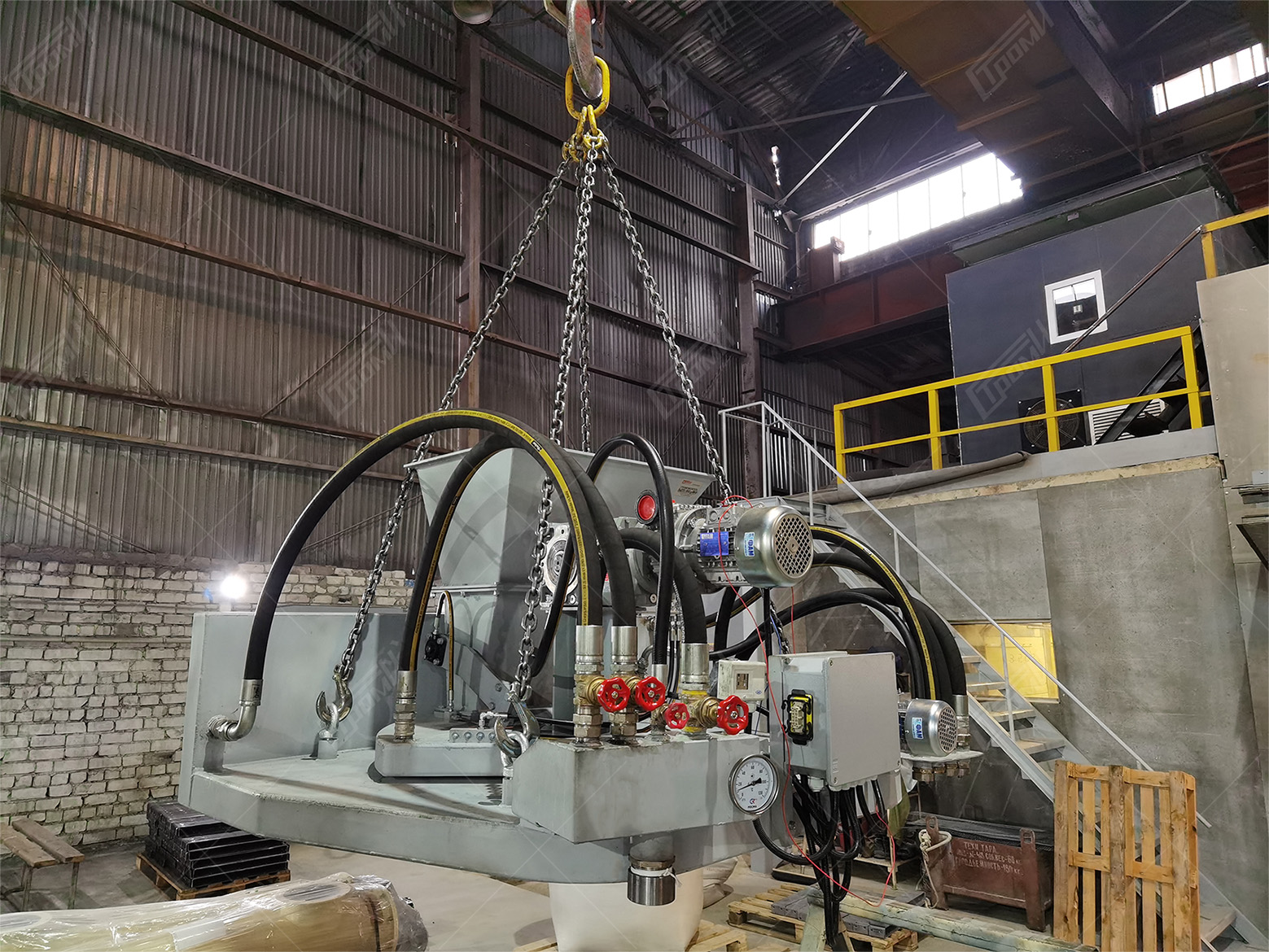

Plunger-turning batch feeders
USING
The feeder is designed for supply of batch, glass scrap, fine and granular materials with grain size of not more than 20 mm, density of not more than 2 gr/cm3, which are not inclined to adhesion when being conveyed, into glass furnaces equipped with the loading pockets, design of which secures the ambient temperature in the loading area of not more than 350°С. Conditions of the feeder operation are temperature from 5° to 60°, relative air humidity 90% and atmosphere pressure 84 – 106,7 kPa.
technical specifications
| Parameters | Values |
|---|---|
| Nominal capacity, m3/hour | 3,3...5,7 |
| Hopper capacity, m3 | 0,45 |
| Kind of current | alternating |
| Voltage, V | 380 ± 38 |
| Frequency, Hz | 50 ± 1 |
| Water supply, pressure, MPa | 0,2...0,4 |
| Water supply, temperature, °С | 5°...30° |
| Hardness, mg-eq/l | no more than 7 |
| Acidity, рН | no more than 7 |
| Suspended solids, mg/l | no more than 50 |
| Gear motor type (with variable-speed transmission) | cylinder-bevel |
| Drive, power, kW | 1,1 |
| Drive, power supply voltage, V | 230 / 400 |
| Drive, current frequency, Hz | 50 |
| Rotation frequency of the electric motor, rpm | 1395 |
| IP code of the electric motor | IP55 |
| Plunger travel, mm | 500 |
| Plunger width, mm | 550 |
| Dimensions (L х W х H), mm | 1500х1900х1010 |
| Weight, kg | 1070 |
