Tray-type batch feeders
USING

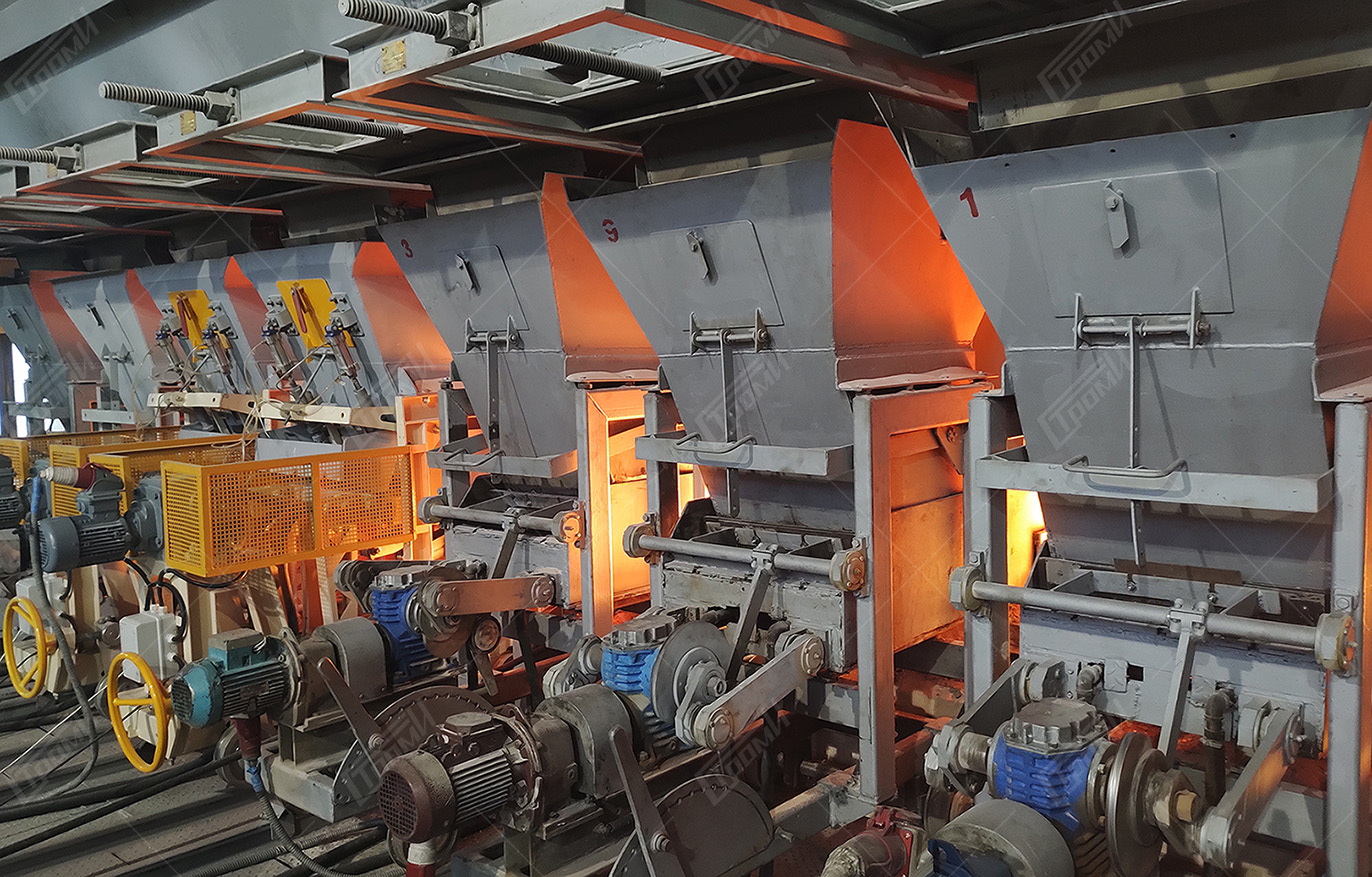

The feeder is designed for supply of batch, glass scrap, fine and granular materials with grain size of not more than 20 mm, density of not more than 2 gr/cm3, which are not inclined to adhesion when being conveyed, into glass furnaces equipped with the loading pockets, design of which secures the ambient temperature in the loading area of not more than 350°С. Conditions of the feeder operation are temperature from 5° to 60°, relative air humidity 90% and atmosphere pressure 84 – 106,7 kPa.
technical specifications

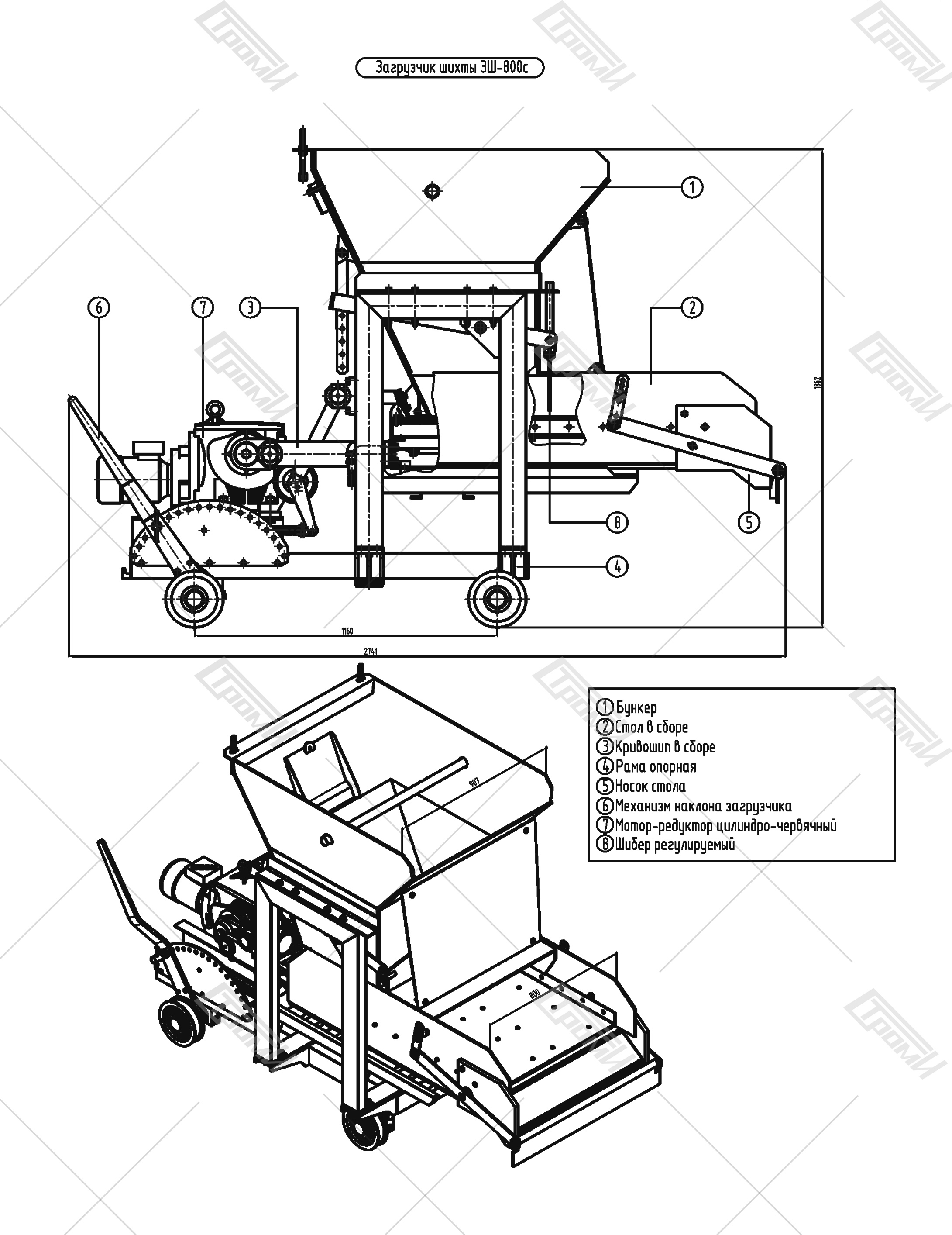

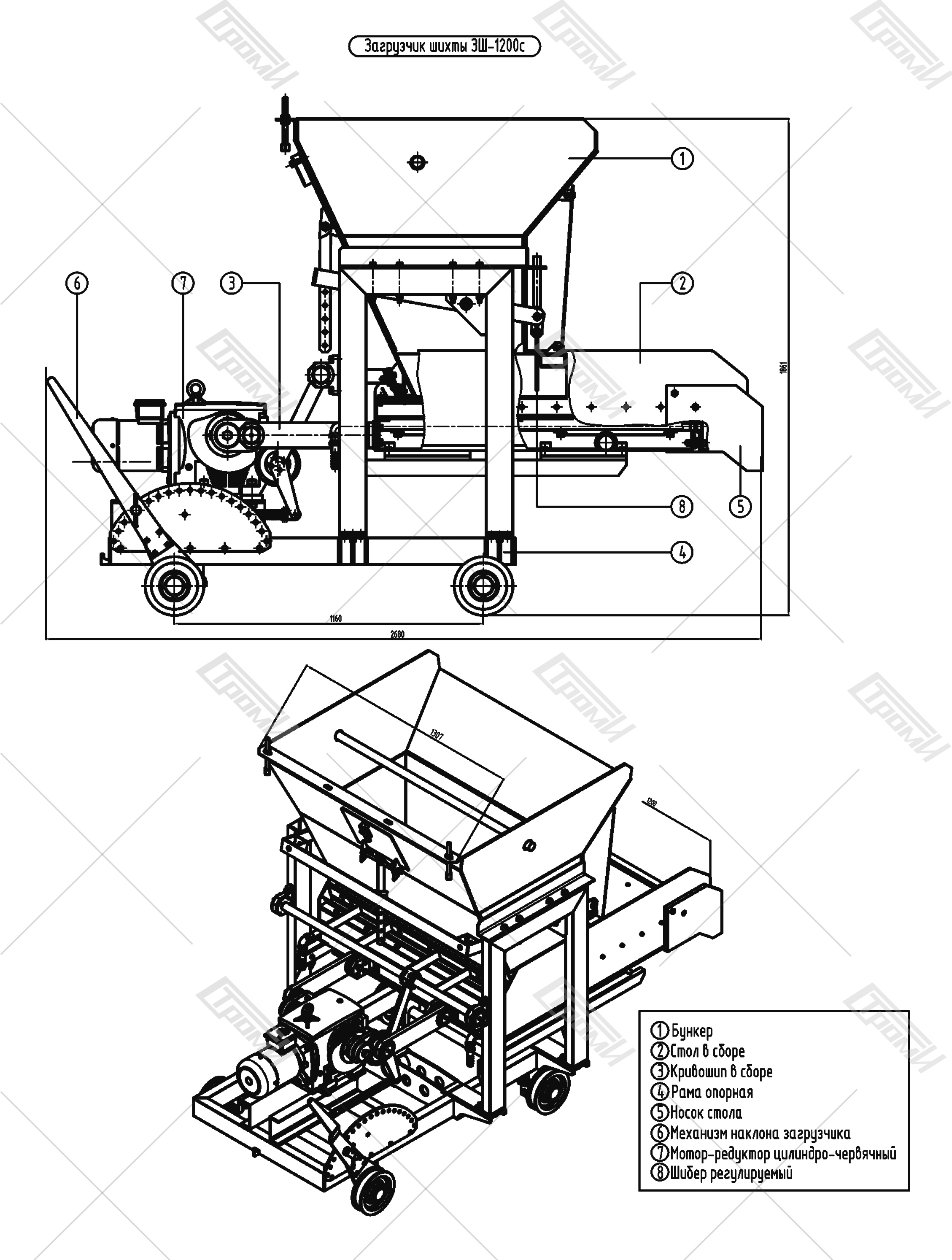

| Parameters | Batch feeder ZSH – 800с | Batch feeder ZSH – 1200с |
|---|---|---|
| Nominal capacity, tons/hour | 2,2...5,9 | 3,3...8 |
| Hopper volume, m3 | 0,45 | 0,7 |
| Kind of current | alternating | alternating |
| Voltage, V | 380 ± 38 | 380 ± 38 |
| Frequency, Hz | 50 ± 1 | 50 ± 1 |
| Pressure, MPa | 0,2...0,4 | 0,2...0,4 |
| Temperature, °С | 5°...30° | 5°...30° |
| Hardness, mg-eq/l | no more than 7 | no more than 7 |
| Acidity, рН | no more than 7 | no more than 7 |
| Suspended solids, mg/l | no more than 50 | no more than 50 |
| Gear motor type | cylinder-worm SK43125LX-90L | cylinder-worm SK43125LX-90L |
| Power, kW | 1,5 | 1,5 |
| Power supply voltage, V | 230 / 400 | 230 / 400 |
| Current frequency, Hz | 50 | 50 |
| Rotation frequency of the electric motor, rpm | 1395 | 1395 |
| IP code of the electric motor | IP55 | IP55 |
| Transmission ratio | 323,5 | 323,5 |
| Rotation frequency of the output shaft, rpm | 4 | 4 |
| Table stroke, mm | 180 | 180 |
| Table width, mm | 800 | 1200 |
| Dimensions (L х W х H), mm | 2741х940х1861 | 2680х1340х1861 |
| Weight, kg | 1180 | 1340 |
