Dosing complexes for small components
USING
The dosing complexes of small components are used for dosing of small components, microadditives, preparation and proportioning of premixes and can be used in different branches of industry. Construction solutions applied in these complexes are optimized for work with «problem» materials, having increased water-absorbing capacity and inclined to overhanging and bridging.
technical specifications
| Parameters | Values |
|---|---|
| The lowest limit of dosing, kg | 0,7 |
| The biggest limit of dosing, kg | 1 |
| Limit of permissible variations of the dose weight mean value, % | ±0,1 |
| Tank volume, liters | 0,7 |
| Requirements to cleaning and drying of the compressed air as per GOST17433-80, class | 7 |
| Power supply for the weigher: from DC mains with the following voltage, V | 12 |
| IP code of the electric equipment housing | IР54 |
| Type of the force-measuring sensor | Strain gauge Р = 6 kg |
| Complex control* | Electro-pneumatic* |
| Air volume consumed per cylinder operation cycle (0,1 sec), m3* | 0,0001* |
| Consumed power of the distributor, VA* | 6,5* |
| *Except for KDMK-V-1,0-nx50-0,7 | — |
The lineup
| Name of the complex KDMK | Proportioning cycle time, sec, no more | Type of the feeders | Number of the feeders | Complex weight, kg, max (with 1 feeder) | Compressed air consumption, m3/min, no more | Rated input of feeders, kW |
|---|---|---|---|---|---|---|
| SR/V-1,0-2х28/50-0,7 | 80 | Spiral feeder with a ripper / vibrating feeder | 2 / 1 | 155 | 0,084 | 2х0,55 / 0,40 |

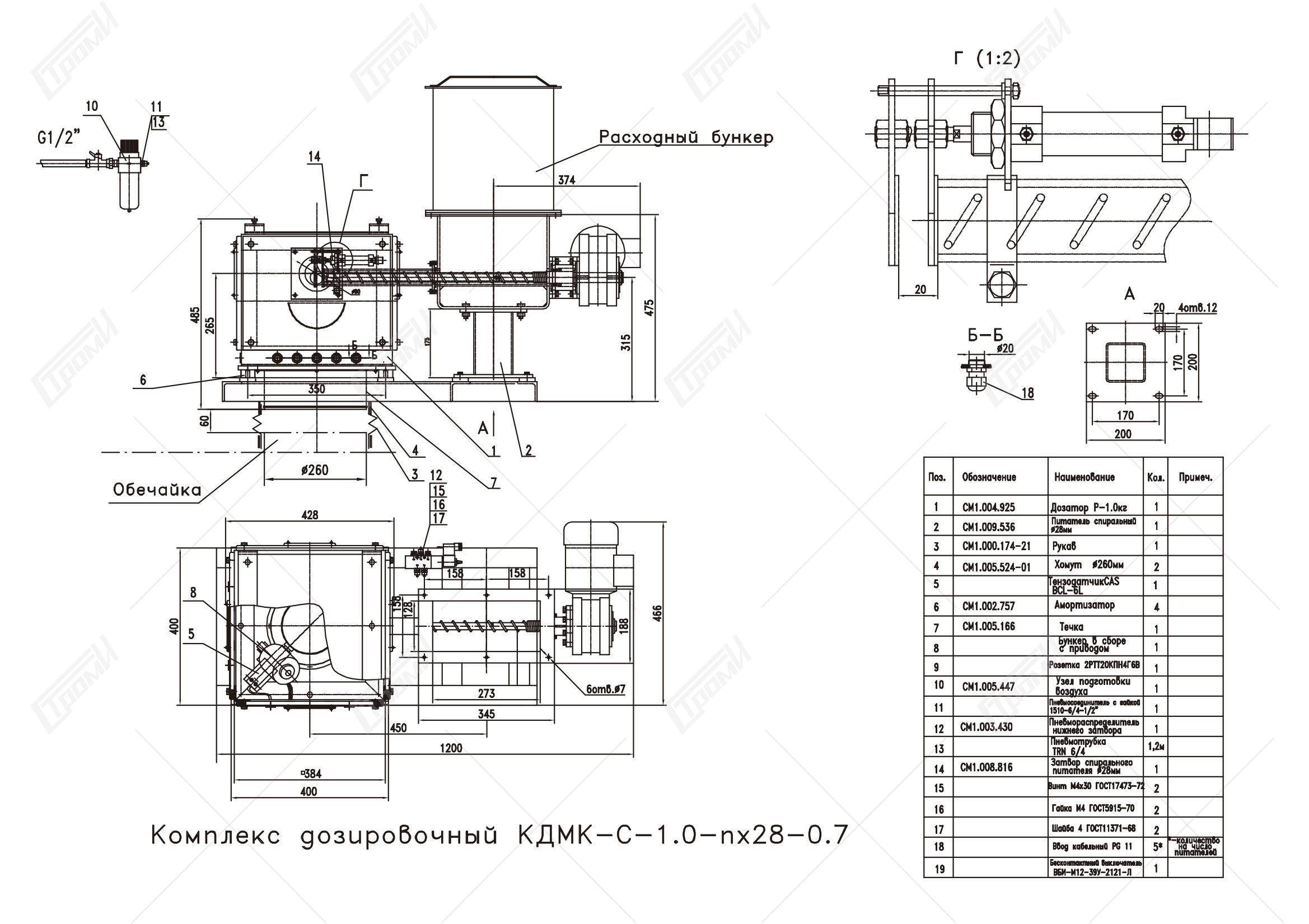

| С-1,0-nx28-0,7 | 100 | Spiral feeder | 1…4 | 45 | 0,084 | nx0,55 |

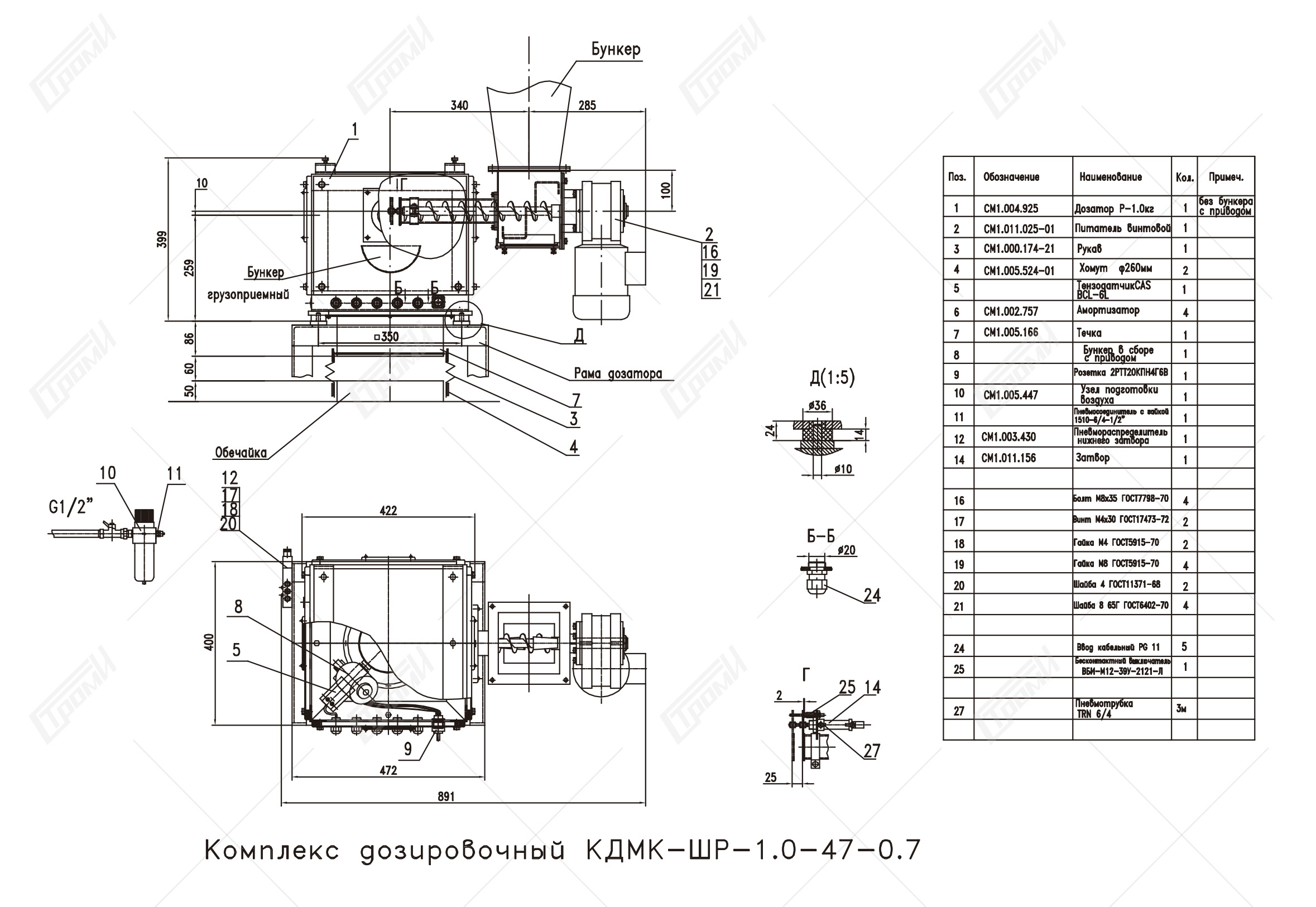

| SHR-1,0-47-0,7 | 80 | Screw feeder with a ripper | 1 | 45 | 0,028 | 0,75 |

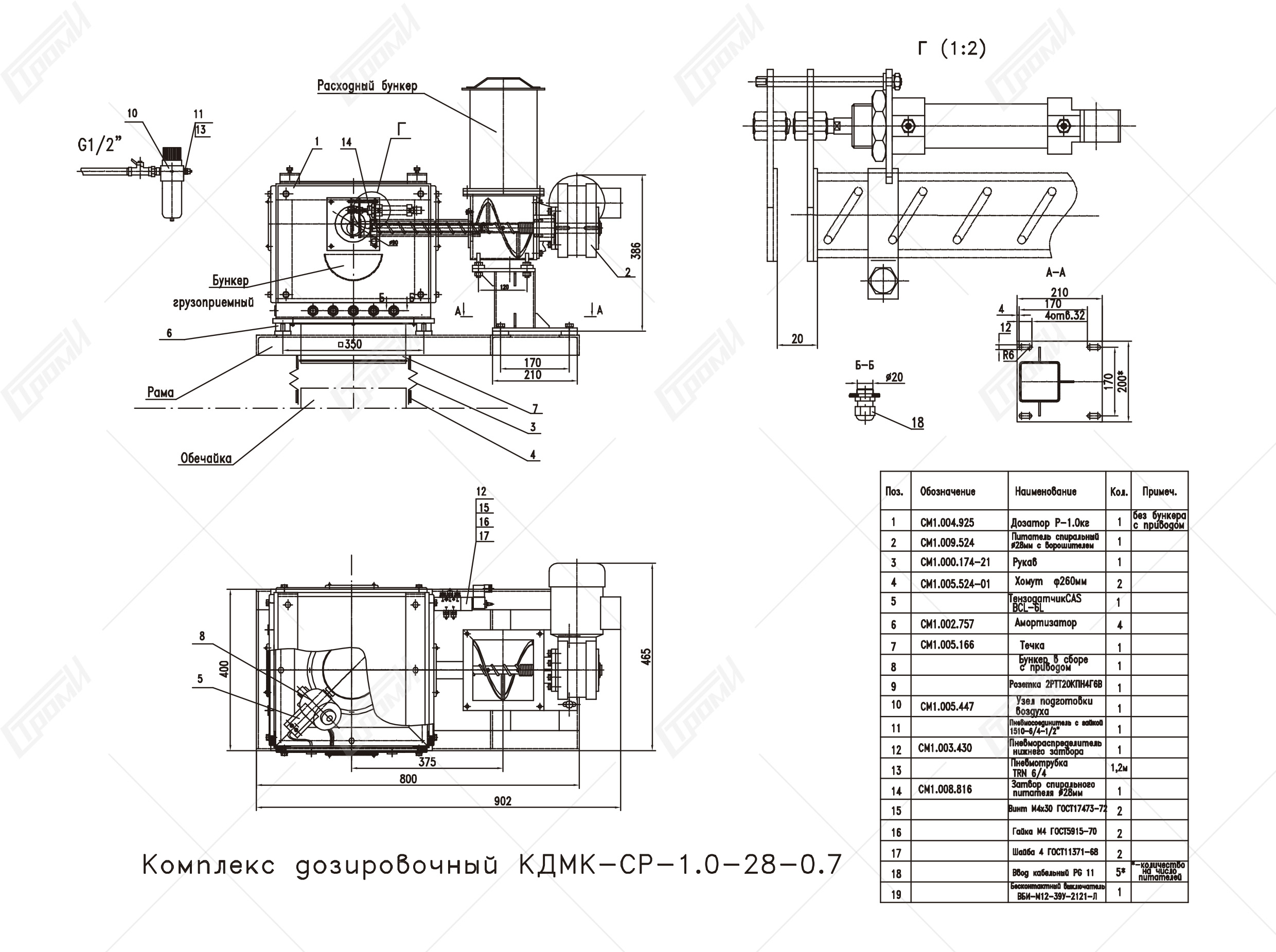

| SR-1,0-nx28-0,7 | 100 | Spiral feeder with a ripper | 1…4 | 35 | 0,084 | nx0,55 |

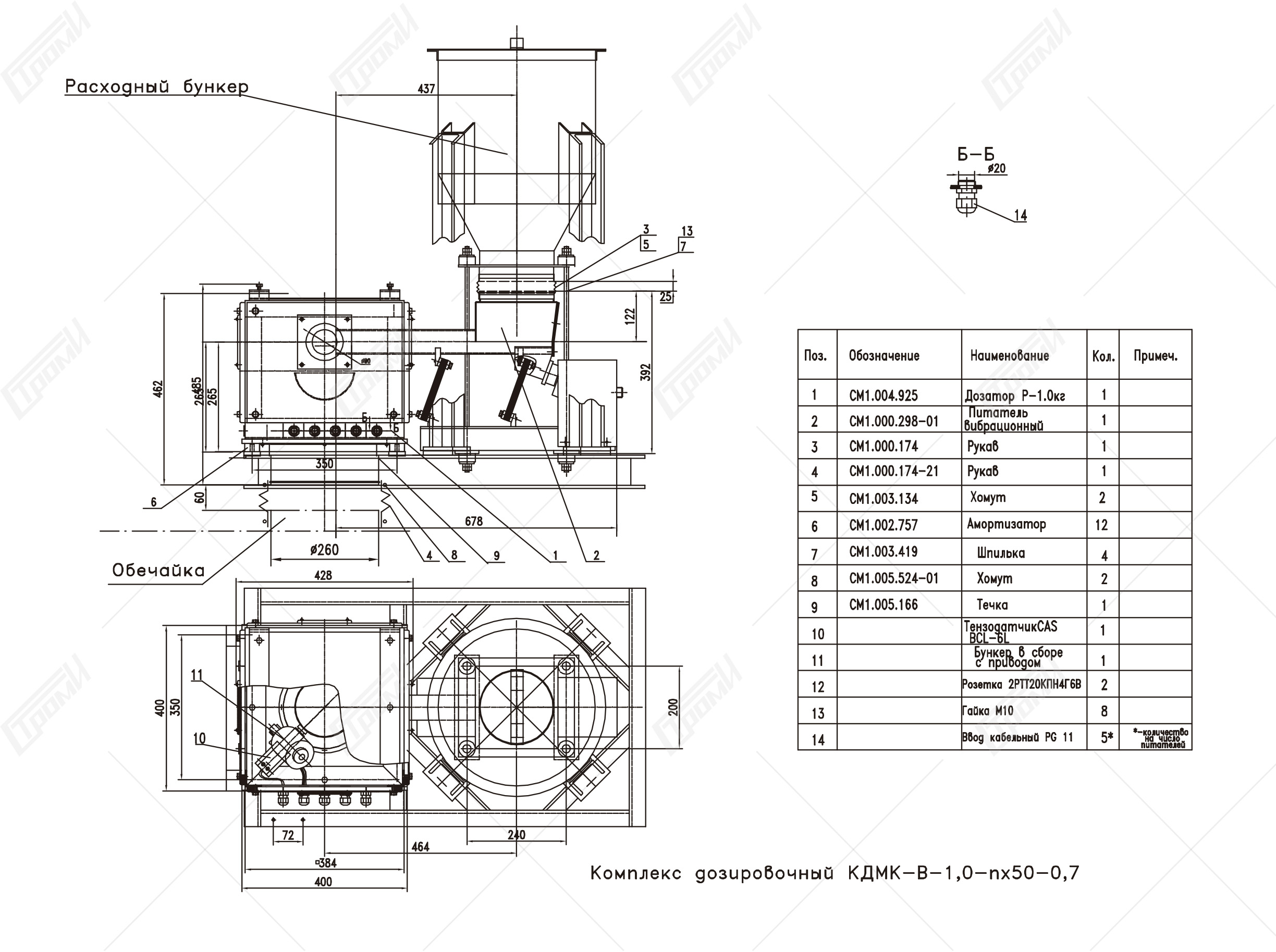

| V-1,0-nx50-0,7 | 60 | Vibrating feeder | 1…5 | 30 | — | nx0,42 |
