Multi-purpose dosing complexes
USING
Multi-purpose dosing complexes KDU-G are used for dosing of free-pouring components (sand, feldspar, columbite slack and others) in different branches of industry. Design of these complexes involvestheuseof gravity feeders when loading and unloading the materials.
technical specifications

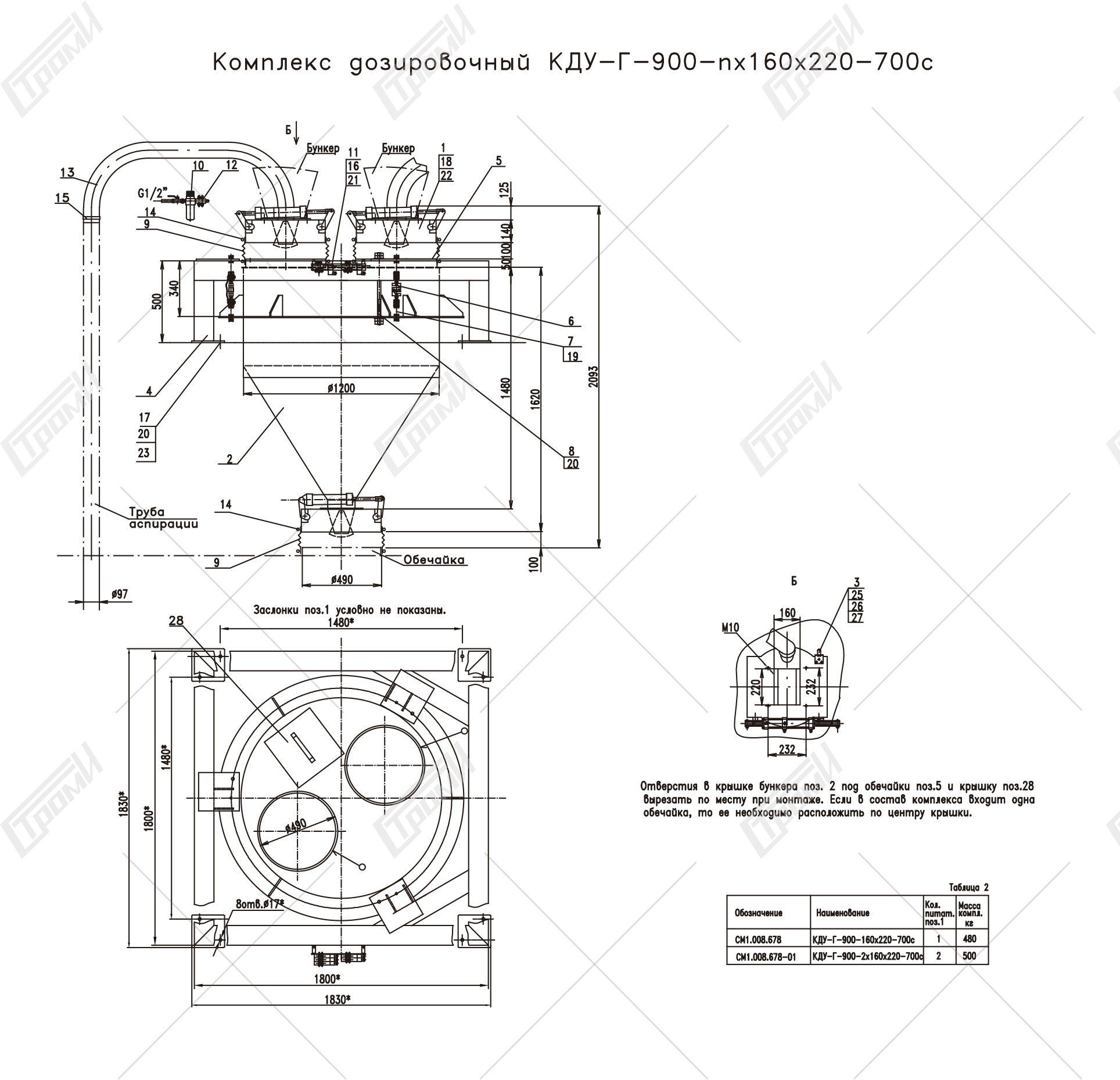

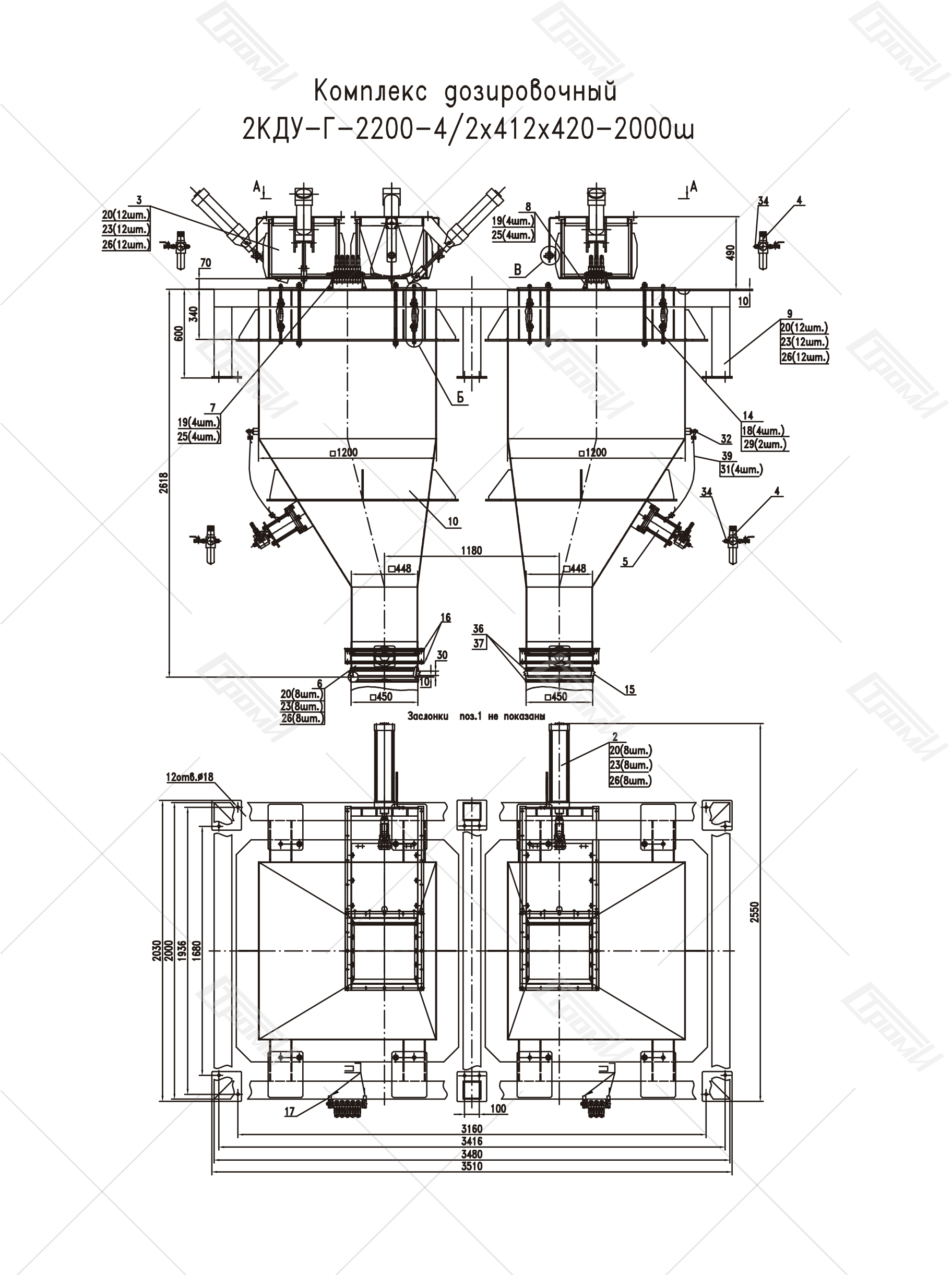

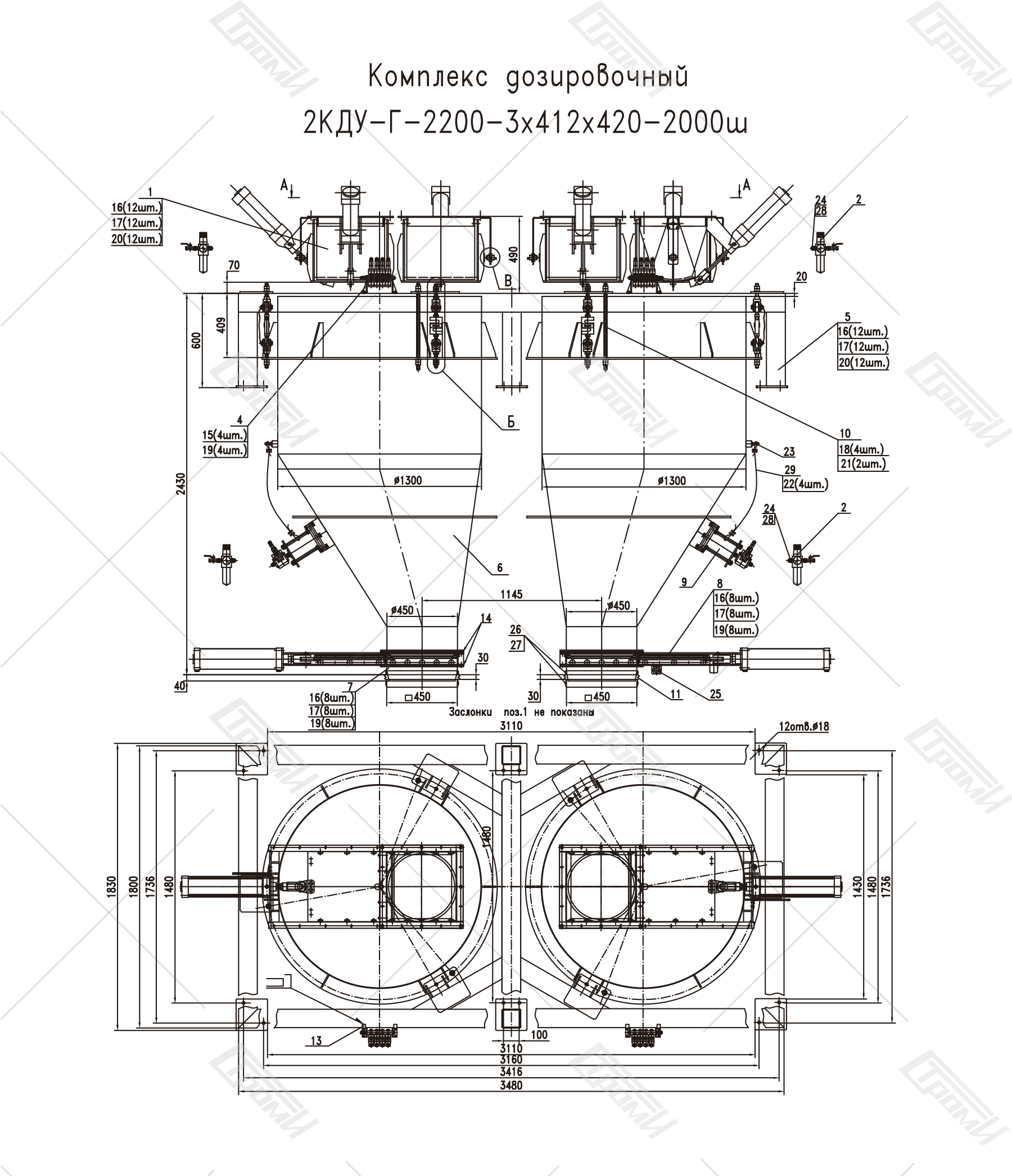

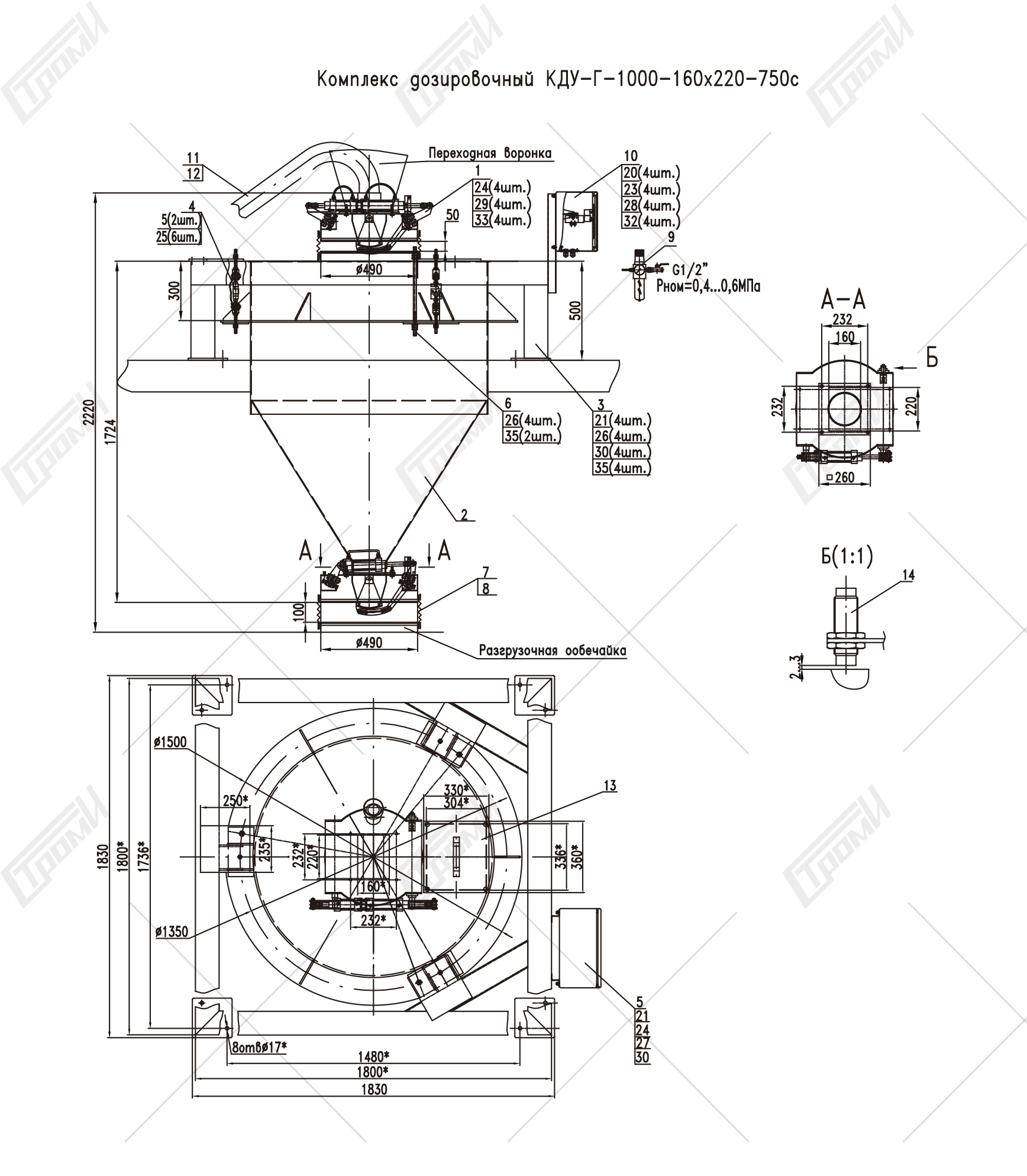

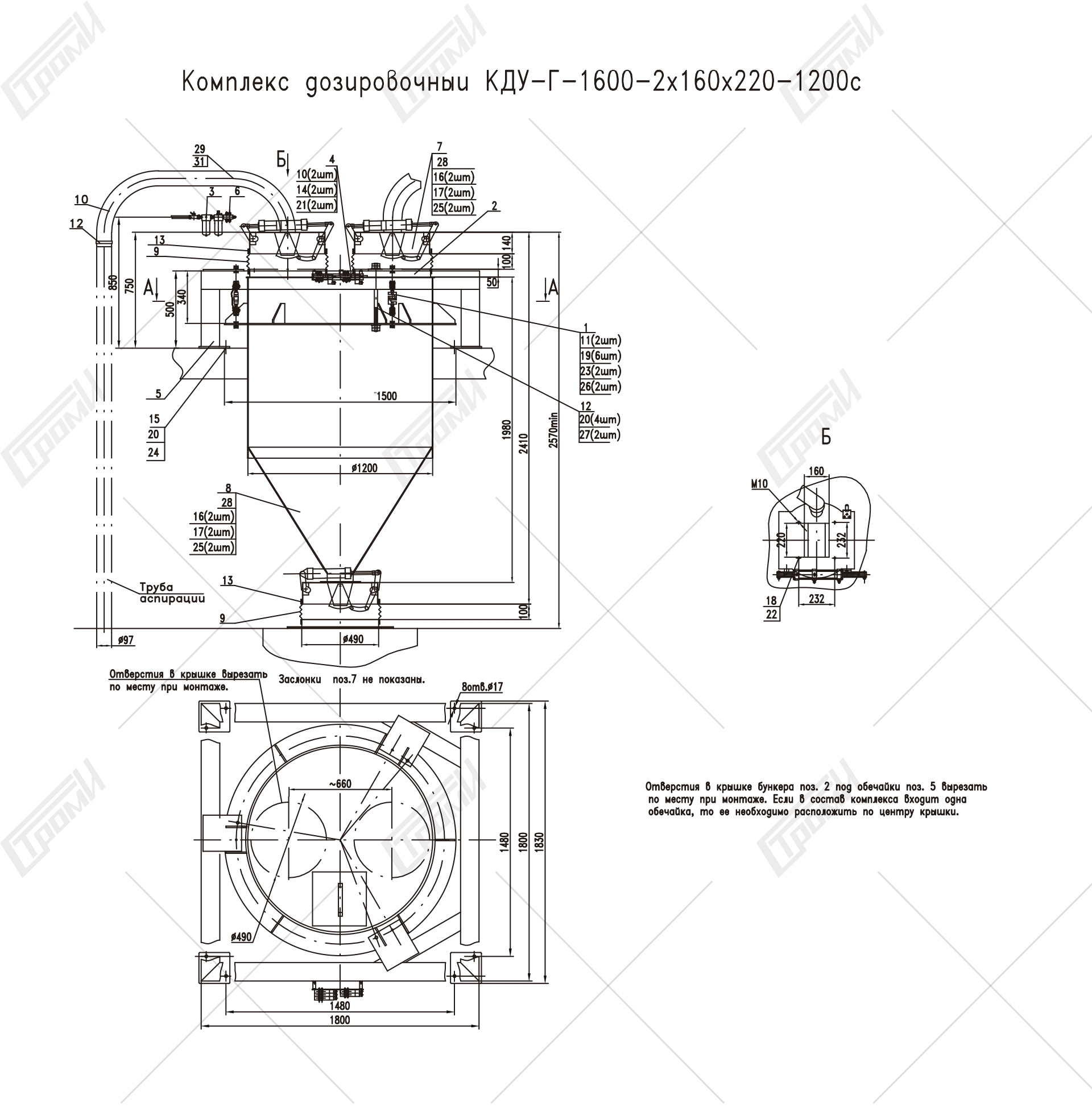

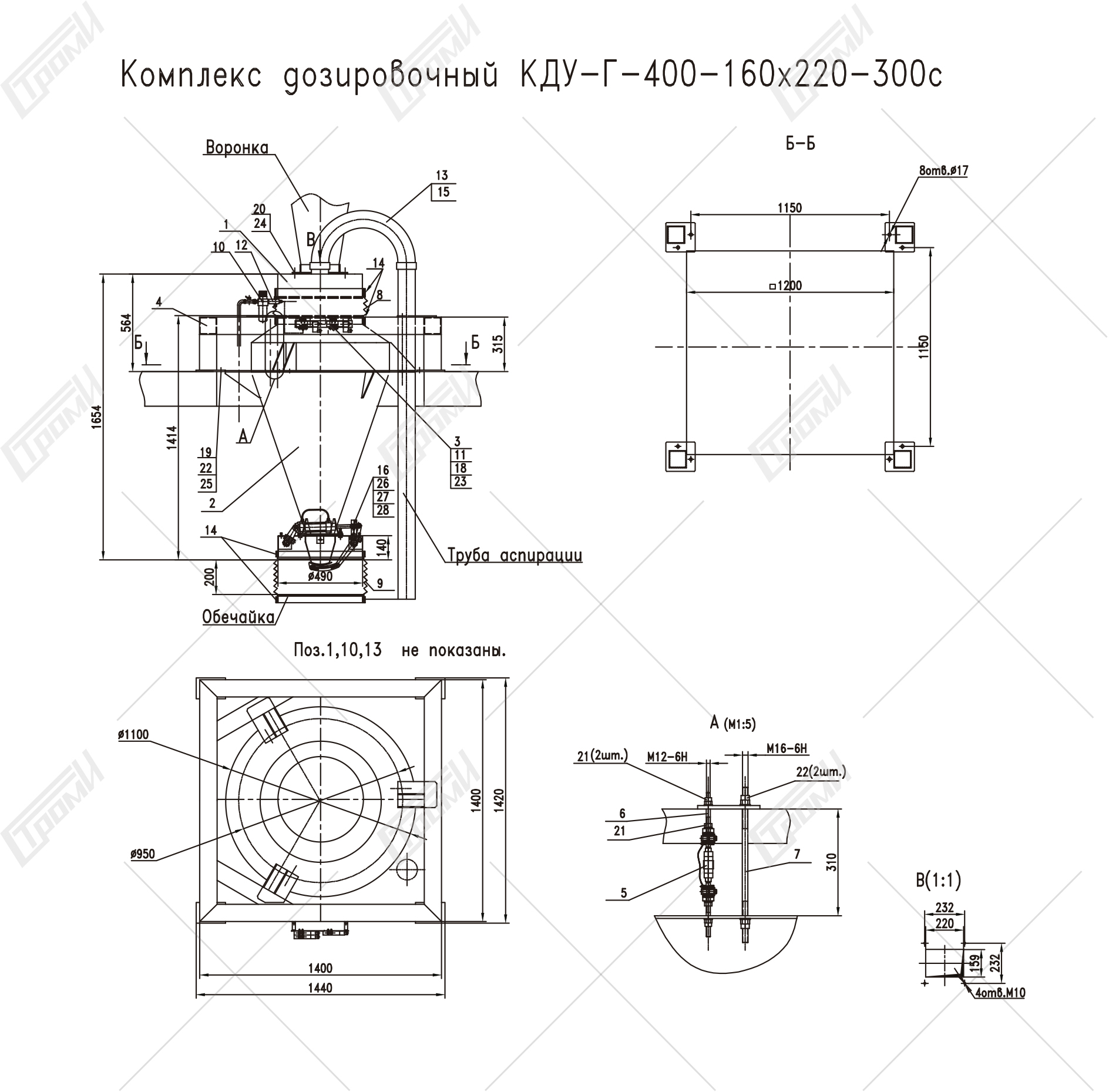

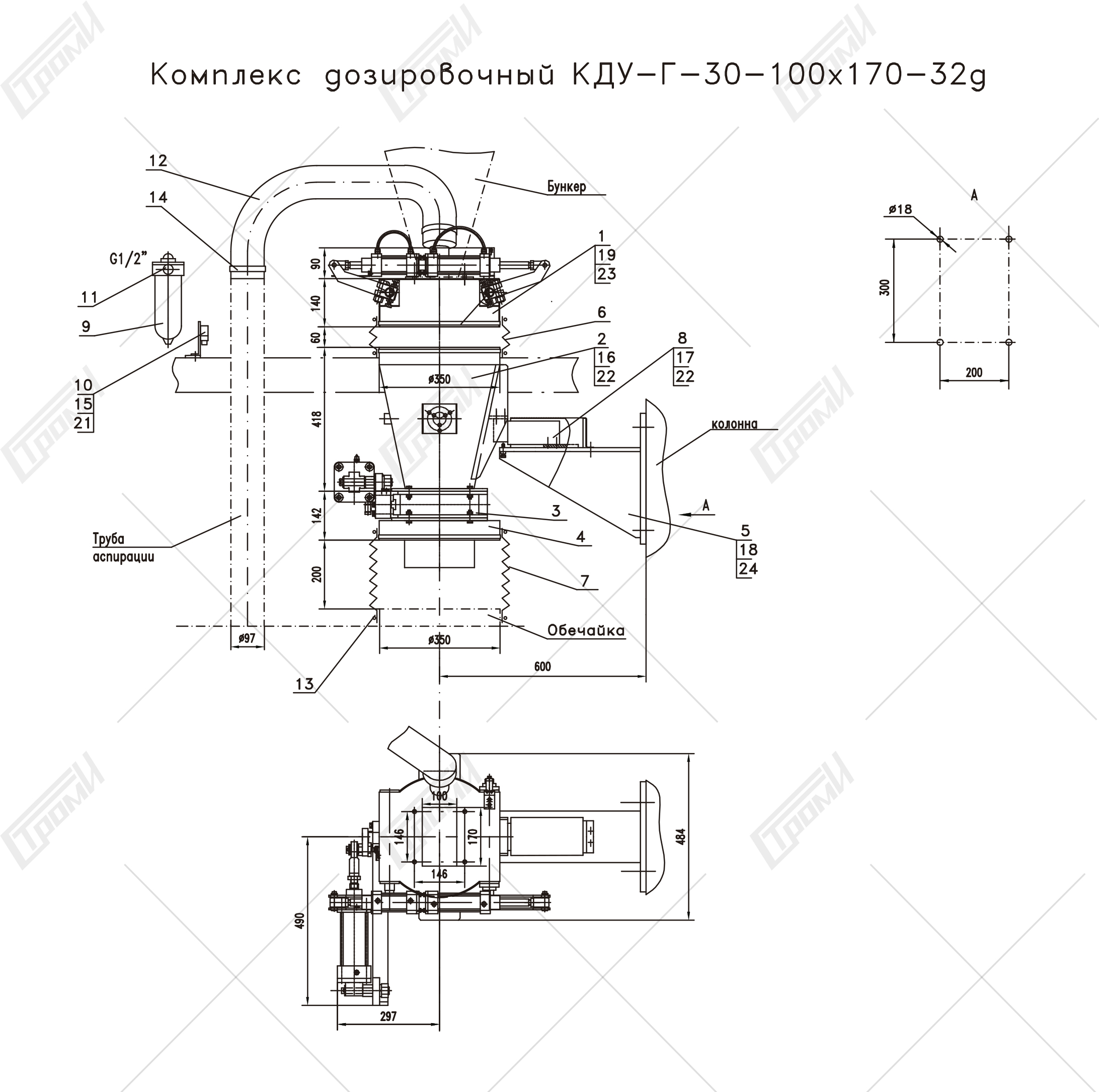

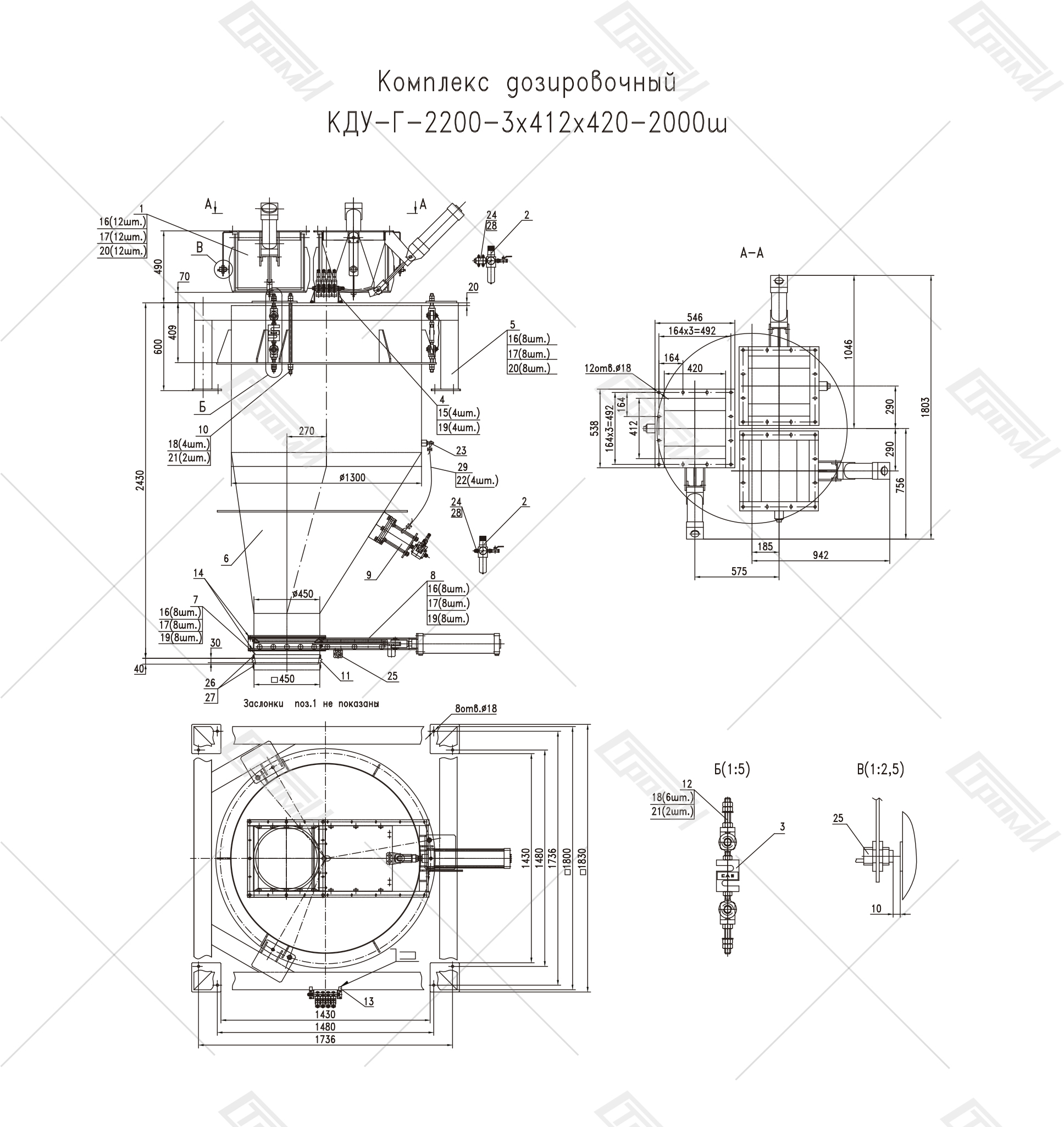

| Parameters | 2KDU-G -2000-3х 412х420- 2000sh | 2KDU-G -2200-4/2х 412х420- 2000sh | KDU-G -2200-3х 412х420 -2000sh | KDU-G -30-100х 170-32d | KDU-G -150-160х 220-130с | KDU-G -400-160х 220-300с | KDU-G -900-160х 220-700с | КДУ-Г -1000-160х 220-750с | КДУ-Г-1600- nx160х220 -1200с |
|---|---|---|---|---|---|---|---|---|---|
| The lowest limit of dosing, kg | 1600 | 1600 | 1600 | 20 | 100 | 280 | 600 | 600 | 1100 |
| The biggest limit of dosing, kg | 2200 | 2200 | 2200 | 30 | 150 | 400 | 900 | 1000 | 1600 |
| Proportioning cycle time, sec, max | 150 | 150 | 150 | 30 | 30 | 60 | 180 | 180 | 150 |
| Limit of permissible variations of the dose weight mean value, % | ±0,1 | ±0,1 | ±0,5 | ±0,1 | ±0,1 | ±0,1 | ±0,1 | ±0,1 | ±0,1 |
| Tank volume, liters | 2000 | 2000 | 2000 | 32 | 130 | 300 | 700 | 750 | 1200 |
| Complex weight, kg | 1900 | 1900 | 1150 | 85 | 155 | 165 | 550 | 550 | 600 |
| Compressed air consumption, normalized to standard conditions (temperature 20°С and pressure 0,1 MPa), m3/min, max | 0,5 | 0,5 | 0,5 | 0,5 | 0,25 | 0,25 | 0,25 | 0,25 | 0,25 |
| Consumed power, W | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Type of the feeding devices | sector gates | sector gates | sector gates | gravity | gravity | gravity | gravity | gravity | gravity |
| Nominal width of the sector gate, mm | 412х420 | 412х420 | 412х420 | — | — | — | — | — | — |
| Number of the feeding devices | 3 | 4(2) | 3 | — | — | — | 1 or 2 | — | 1 or 2 |
| Type of the discharging device | sliding shutter | sliding shutter | sliding shutter | — | — | — | — | — | — |
| Nominal width of the sliding shutter, mm | 400х400 | 400х400 | 400х400 | — | — | — | — | — | — |
| Type of the force-measuring sensors: strain gauge | R=2000kg | R=1000kg | R=2000kg | R=100kg | R=100kg | R=200kg | R=1000kg | R=1000kg | R=1000kg |
| Number of the force-measuring sensors | 3 | 4 | 3 | — | 3 | 3 | 3 | 3 | 3 |
