Small-scale dosing complexes
USING
The small-scale proportioning complexes KDM are designed for proportioning of raw materials within the range of up to 6 kg. Design of the KDM is optimized for using materials with «problem» properties: high water-absorbing ability, inclination to overhanging, adhesion and bridging.
technical specifications
| Parameters | Values |
|---|---|
| The lowest limit of dosing (NmPD), kg | 4 |
| The biggest limit of dosing (NPD), kg | 6 |
| Limit of permissible variations of the dose weight mean value, % | ±0,1 |
| Tank volume, liters | 6,3 |
| Complex control | Electro-pneumatic |
| Requirements to cleaning and drying of the compressed air as per GOST 17433-80, class | 7 |
| IP code of the electrical equipment housing | IР54 |
| Type of the force-measuring sensor | Strain gauge R = 20 kg |
| Compressed air consumption, normalized to standard conditions (t = 20°, р = 0,1 MPa), m3/min, max | 0,06 |
| Diameter of the pneumatic cylinder of the proportioning device, mm | 32 |
| Stroke of the pneumatic cylinder piston, mm | 80 |
The lineup
| Name of the complex KDM | Proportioning cycle time, sec, max | Number of the feeding devices in the complex, n | Overall dimensions of the complex, mm, max | Complex weight (with 1 feeder), kg, max | Consumed power (1 feeder), kW | Feeder type |
|---|---|---|---|---|---|---|

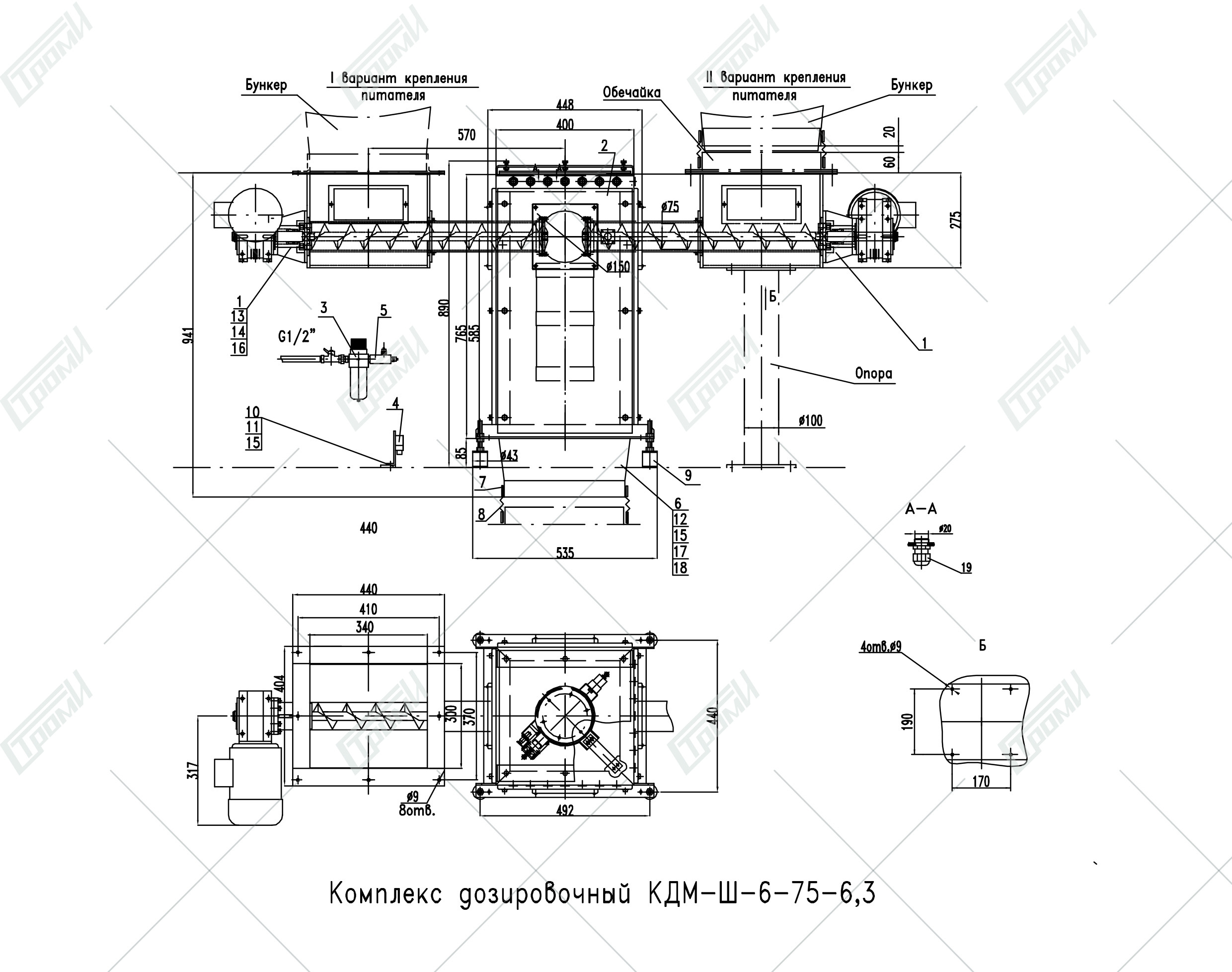

| SH-6-75-6,3 | 60 | 1…4 | 1270x550x850 | 50 | 0,75 | Screw feeder |
| SH-6-75z-6,3 | 60 | 1 (2) | 1270x550x850 | 50 | 0,75 | Screw feeder |
| SH-6-2х75-6,3 | 120 | 2 | 2080х725х940 | 96 | 0,75 / 2,2 | Screw feeder / Screw feeder with a ripper |
| SHR-6-75z-6,3 | 90 | 1…4 | 1270x550x850 | 80 | 2,2 | Screw feeder with a ripper |
| SHR-6-75H-6,3 | 90 | 1 | 2100х640х1300 | 80 | 2,2 (3) | Screw feeder with a ripper |

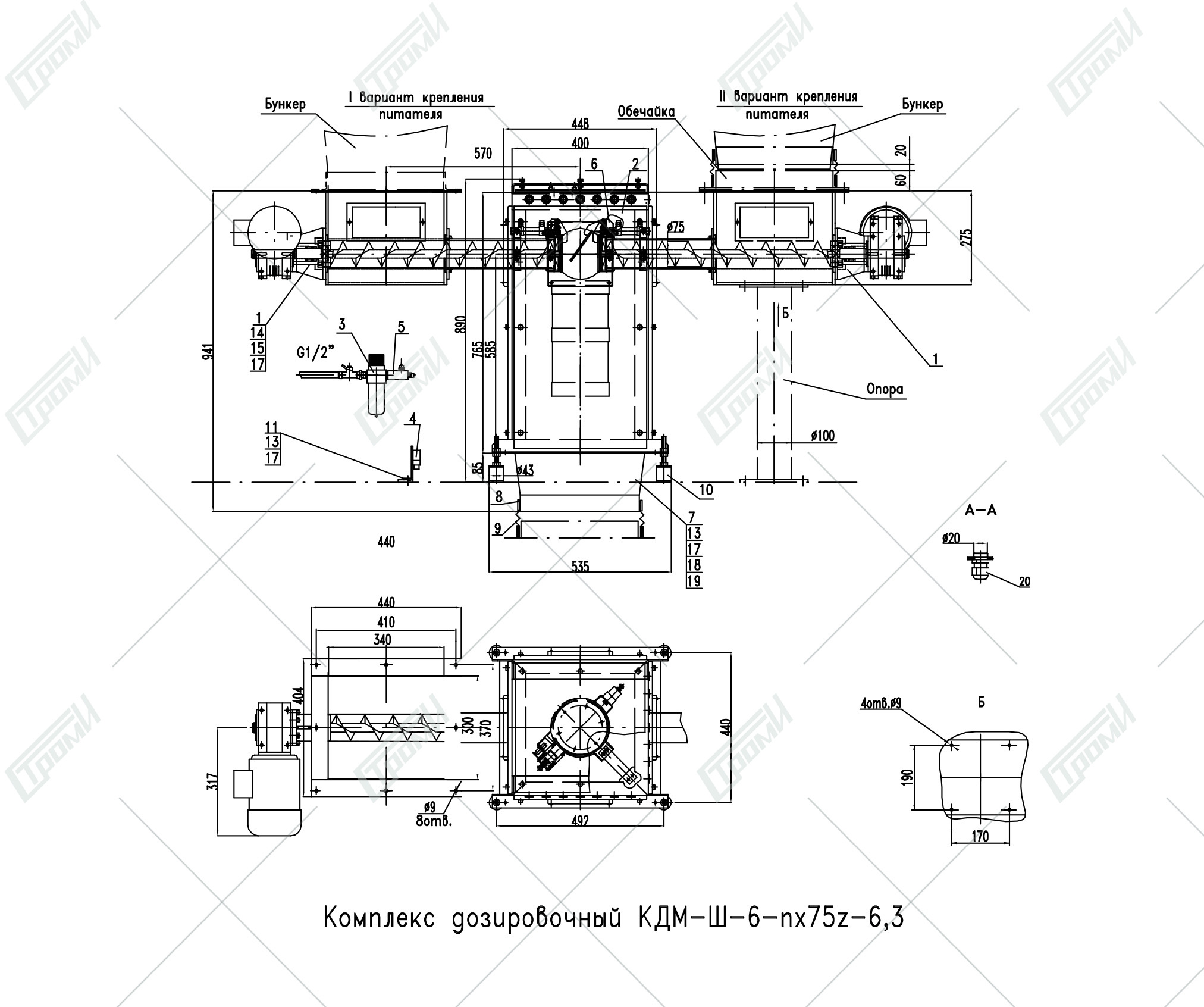

| SHR-6-nx47-6,3 | 90 | 1…4 | 1270х550х850 | 52 | 0,75 | Screw feeder with a ripper |
| SHR-6-nx75-6,3 | 90 | 1…4 | 1270х550х850 | 80 | 2,2 | Screw feeder with a ripper |

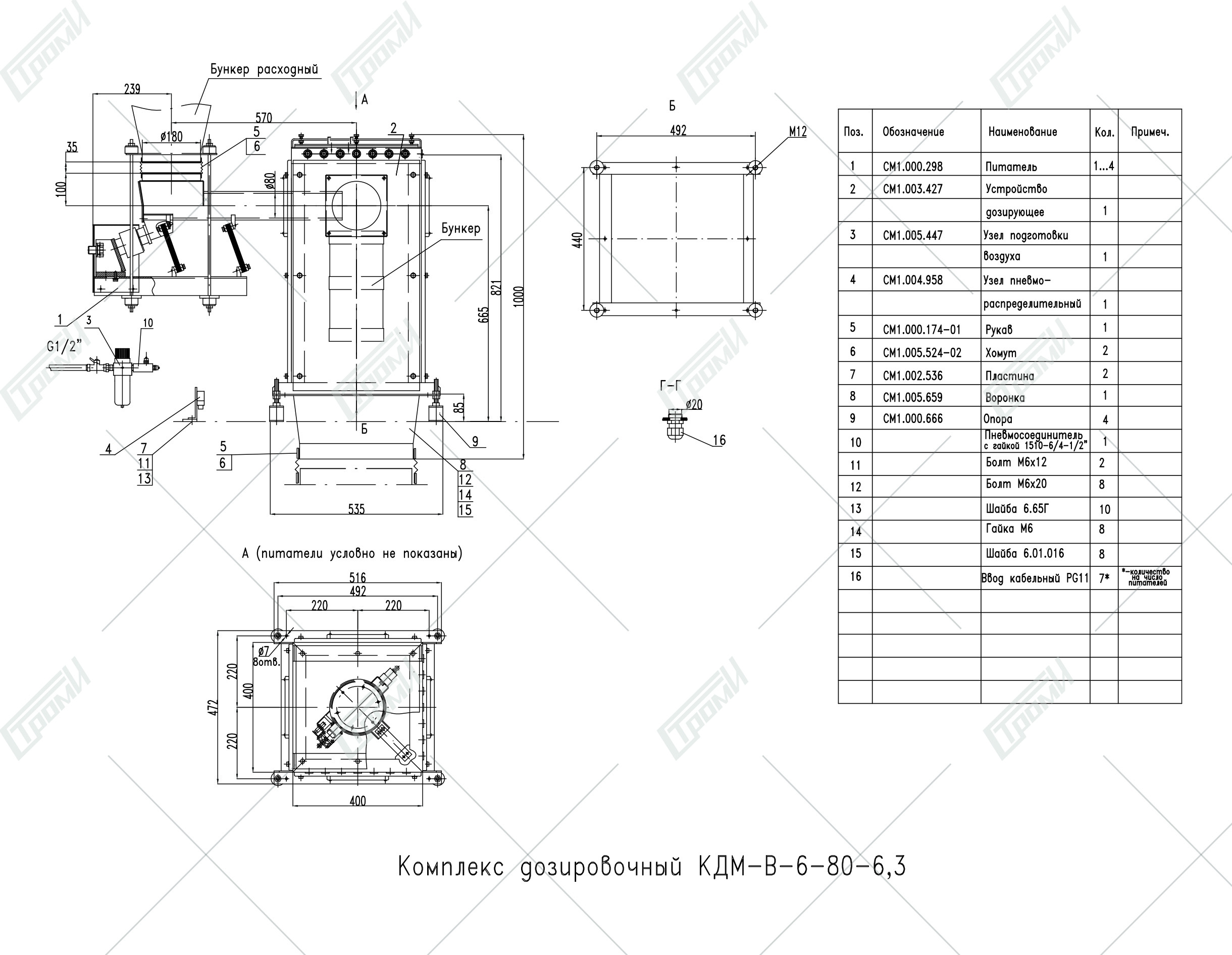

| V-6-80-6,3 | 60 | 1…4 | 1075х550х850 | 50 | 0,4 | Vibrating feeder |
