Double-roll crushers
USING
Two-roll crushers DV2-10А and DV2-15А are designed for crushing of waste in production of glassware with wall thickness of max. 12mm. Two-roll crushers DVS2-10А and DVS2-15А with stepped drums are designed for crushing of waste in production of sheet glass with sheet thickness of maximum 12mm. Operation conditions of the crusher: temperature from -30° to 40°, relative air humidity 90%, atmosphere pressure 84-106,7 mm Hg.
technical specifications
| Parameters | DV (S) 2-10А | DV (S) 2-15А |
|---|---|---|
| Capacity, tons/hour | 6…10* | 9…15* |
| Grain size after crushing, mm | 5…30 | 5…30 |
| Rotation frequency of the driven shaft, rt/min | 60 | 60 |
| Adjustable clearance between roll drums,mm | 5…40 | 5…40 |
| Gear motor type | A503 NH55 24,0 S4 B3 M4SA4 | A503 NH55 24,0 S4 B3 M4LA4 |
| Nominal power of the drive, kW | 11 (2 x 5,5) | 15 (2 x 7,5) |
| Number of gear motors | 2 | 2 |
| Electric power supply voltage, V | 380 ± 38 | 380 ± 38 |
| IP code of the electric motor | IP55 | IP55 |

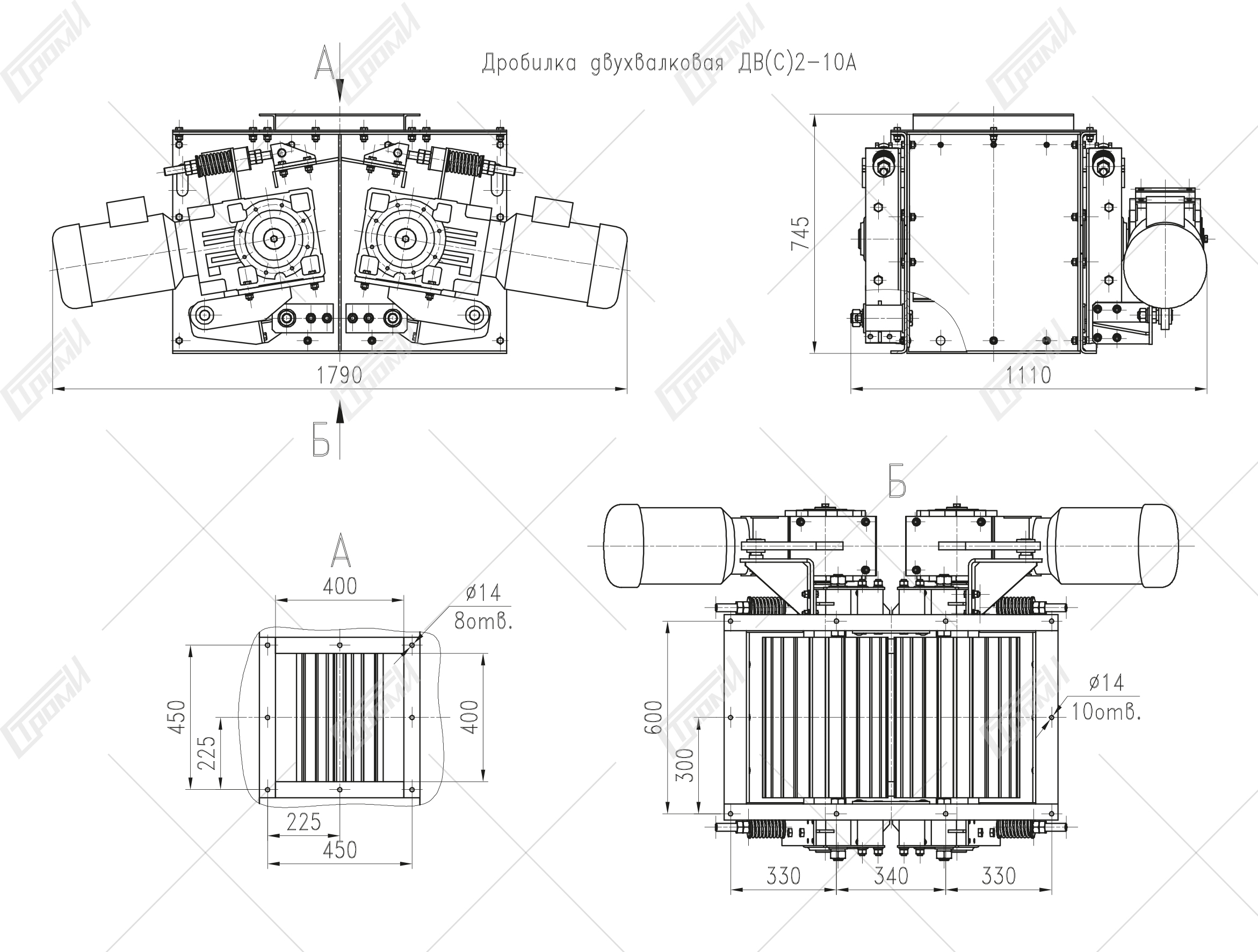

| Overall dimensions (L x W x H), mm | 1110 x 1790 x 745 | 1510 x 1790 x 745 |
| Weight, max, kg | 925 | 1190 |
