BELT BUCKET ELEVATORS

  • Width of buckets 160, 250, 320, 400, 650 mm
  • Capacity from 11.5 up to 165 m3/h
  • Lift height is from 4 up to 50 m
  • Elevators are completed with drives, bearing assemblies and a special tape with a low residual stretching and a high resistance to abrasive wear
  • The HARDOX, CASTOLIN replaceable lining materials, stainless steel, plastic, etc. are used in order to increase the service life and to reduce sticking
  • Different types of elevator buckets are used in the same device, such as plastic and steel ones
  • The elevator operation is monitored with the help of the packaged motion and belt drift sensors
  • Access to the working element is provided from any side along the entire height of the elevator shaft for repair and maintenance of elevators, in addition to the hatches and removable panels at the upper and lower stations

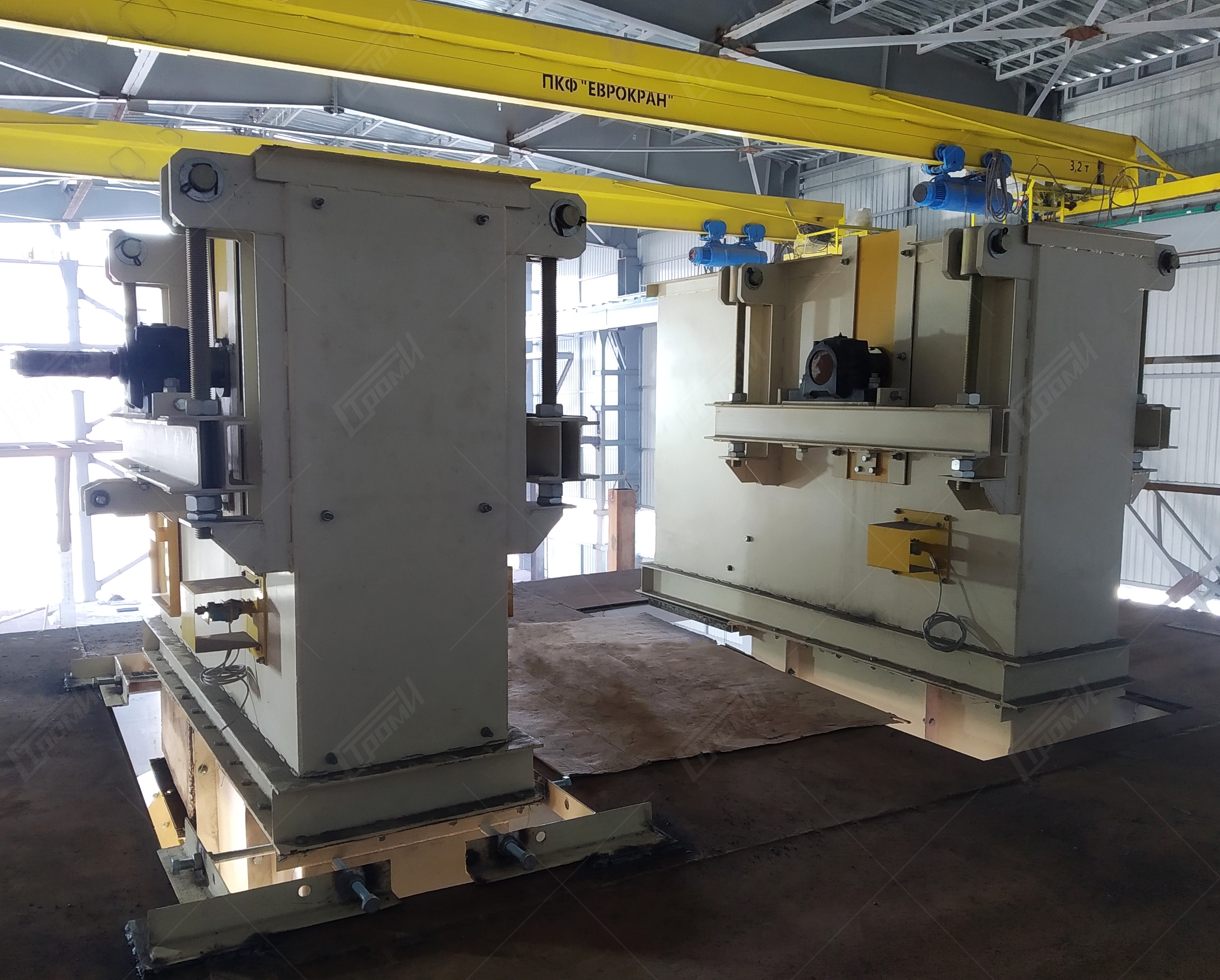

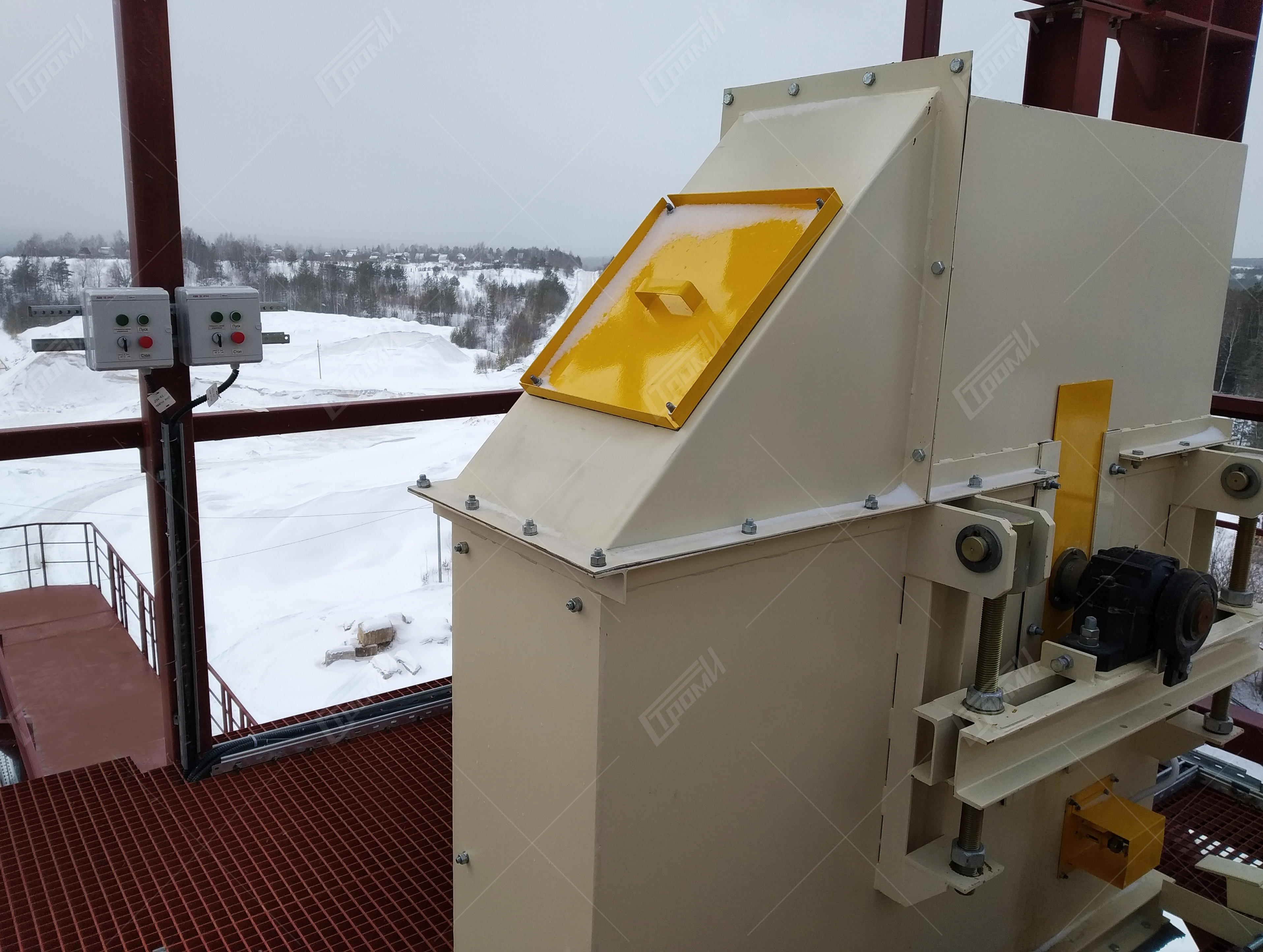

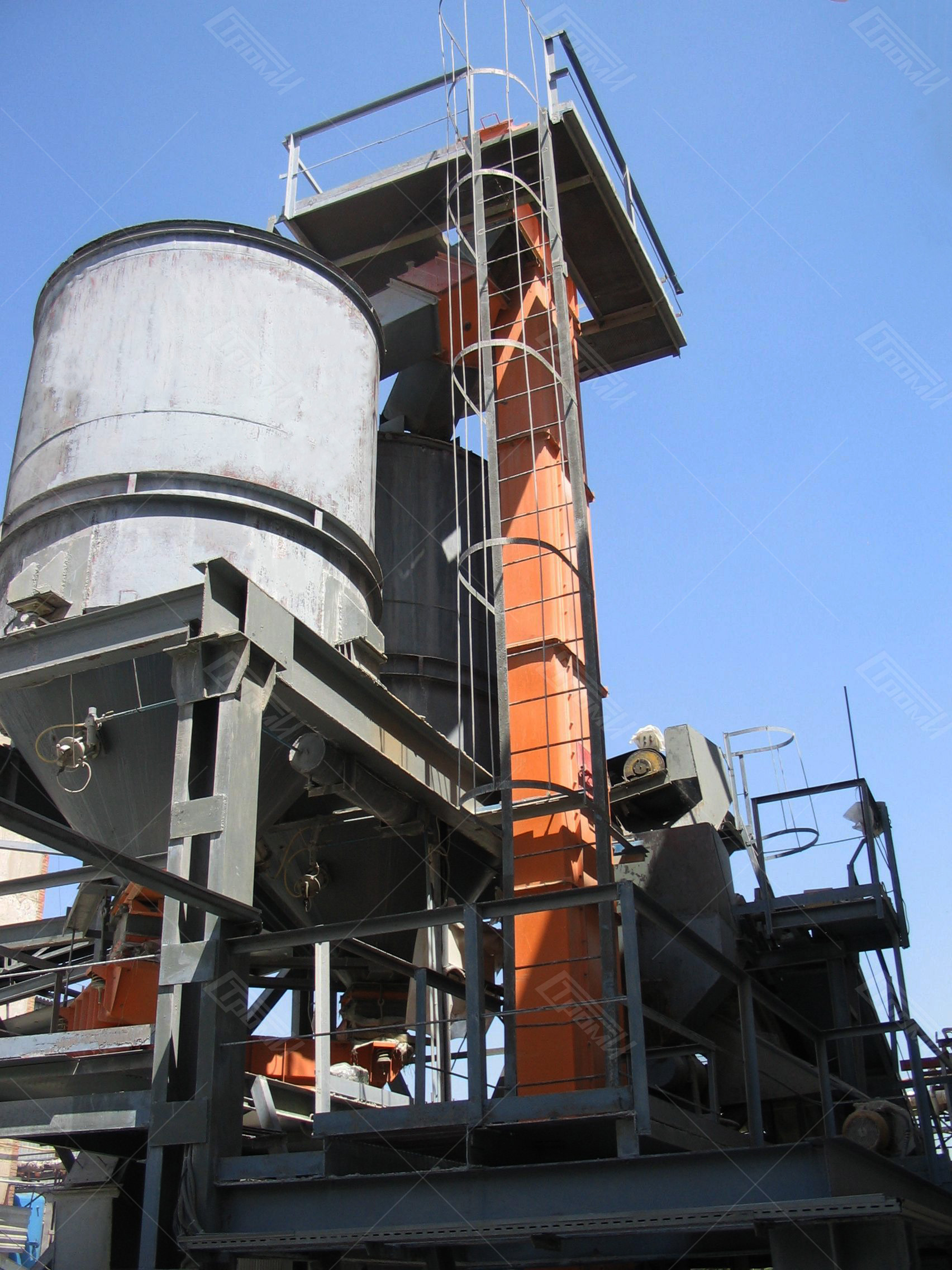

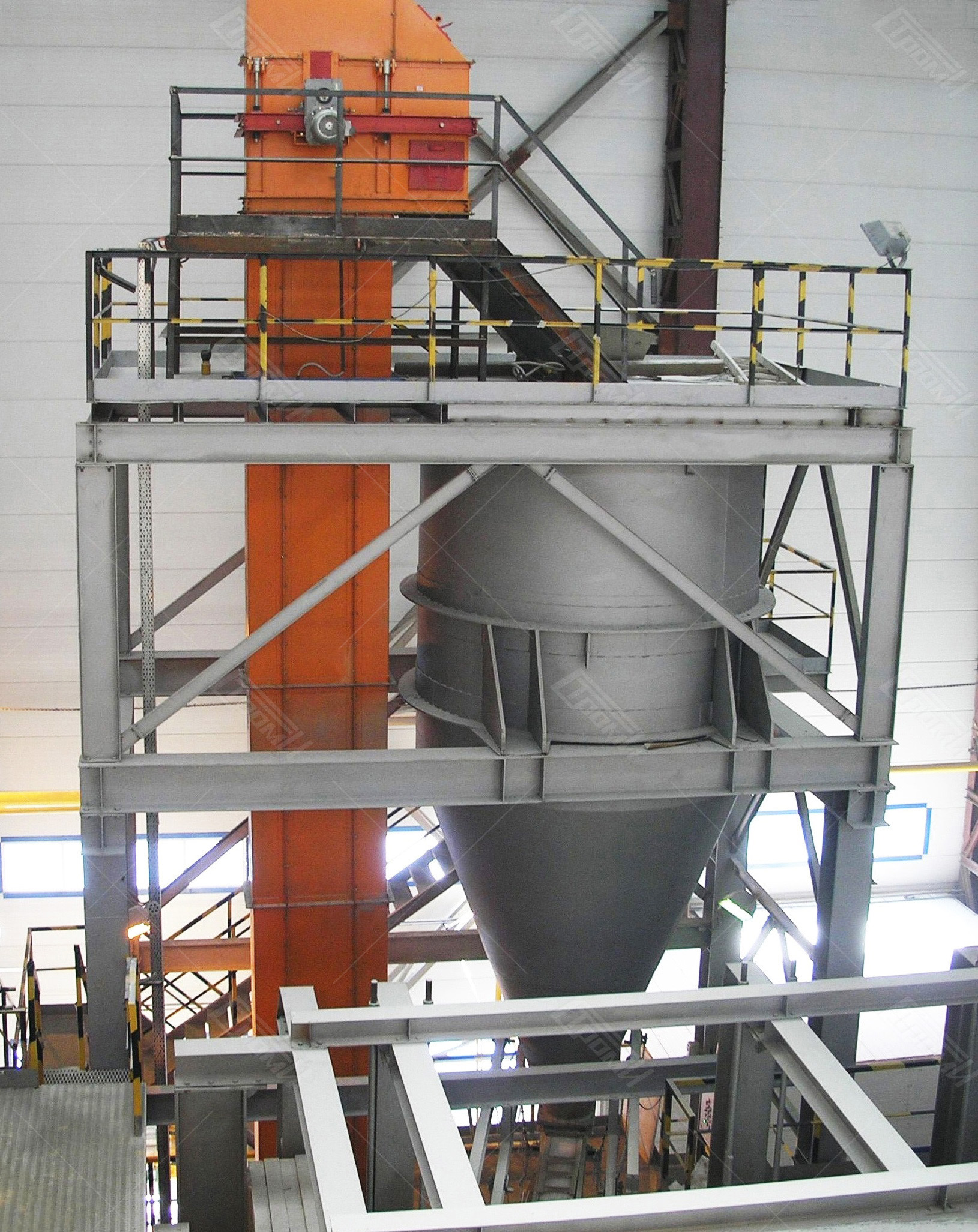

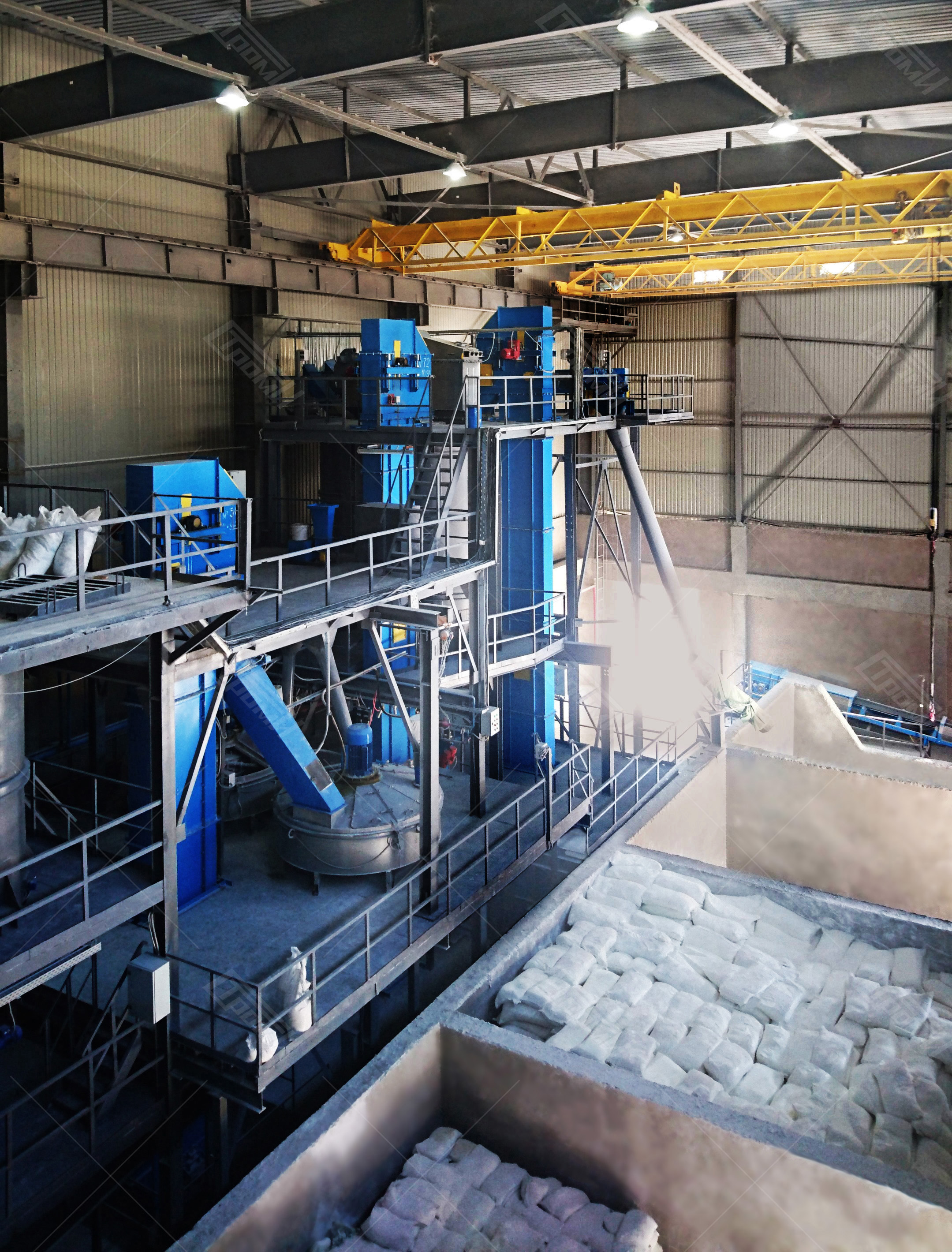

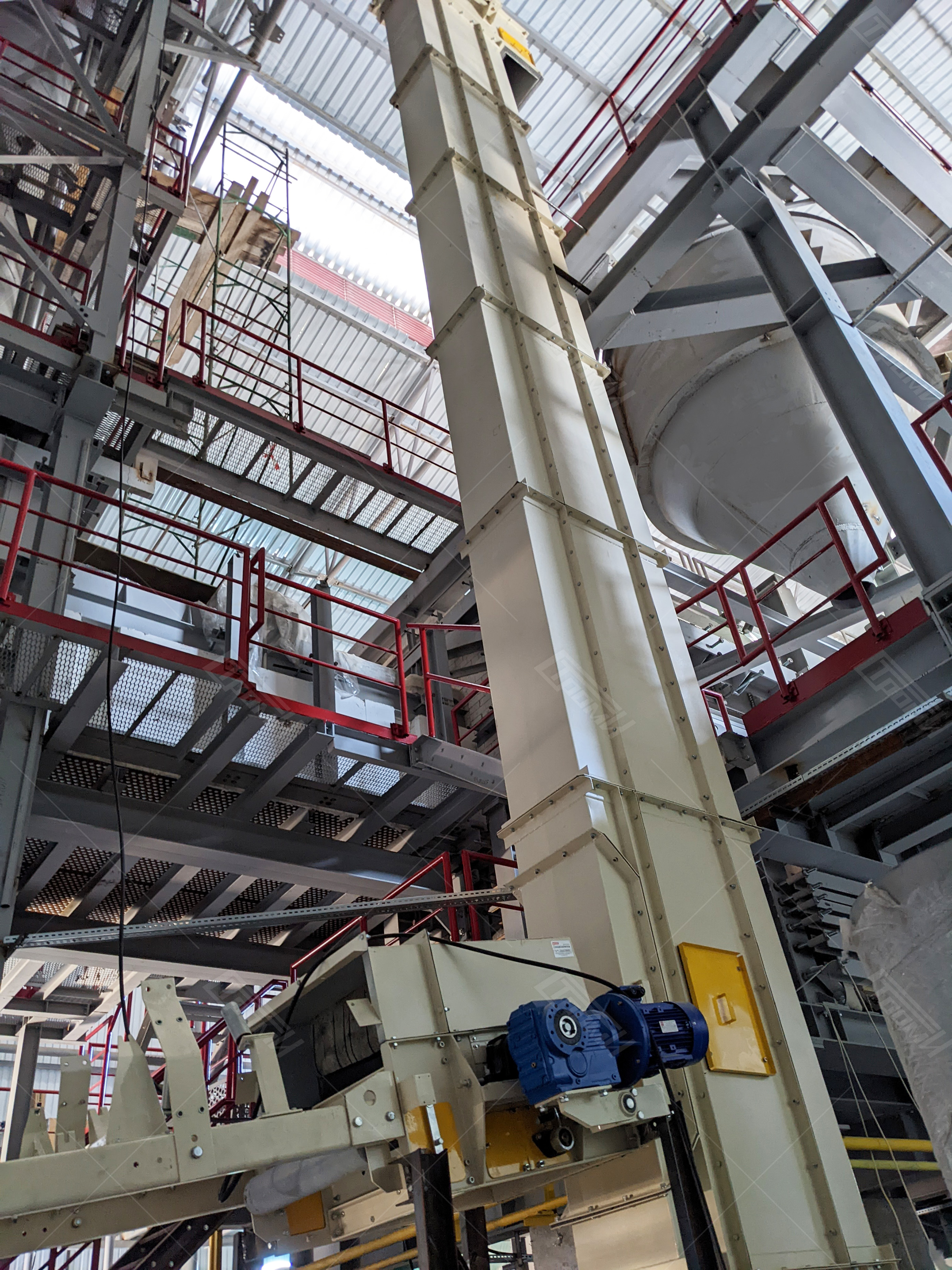

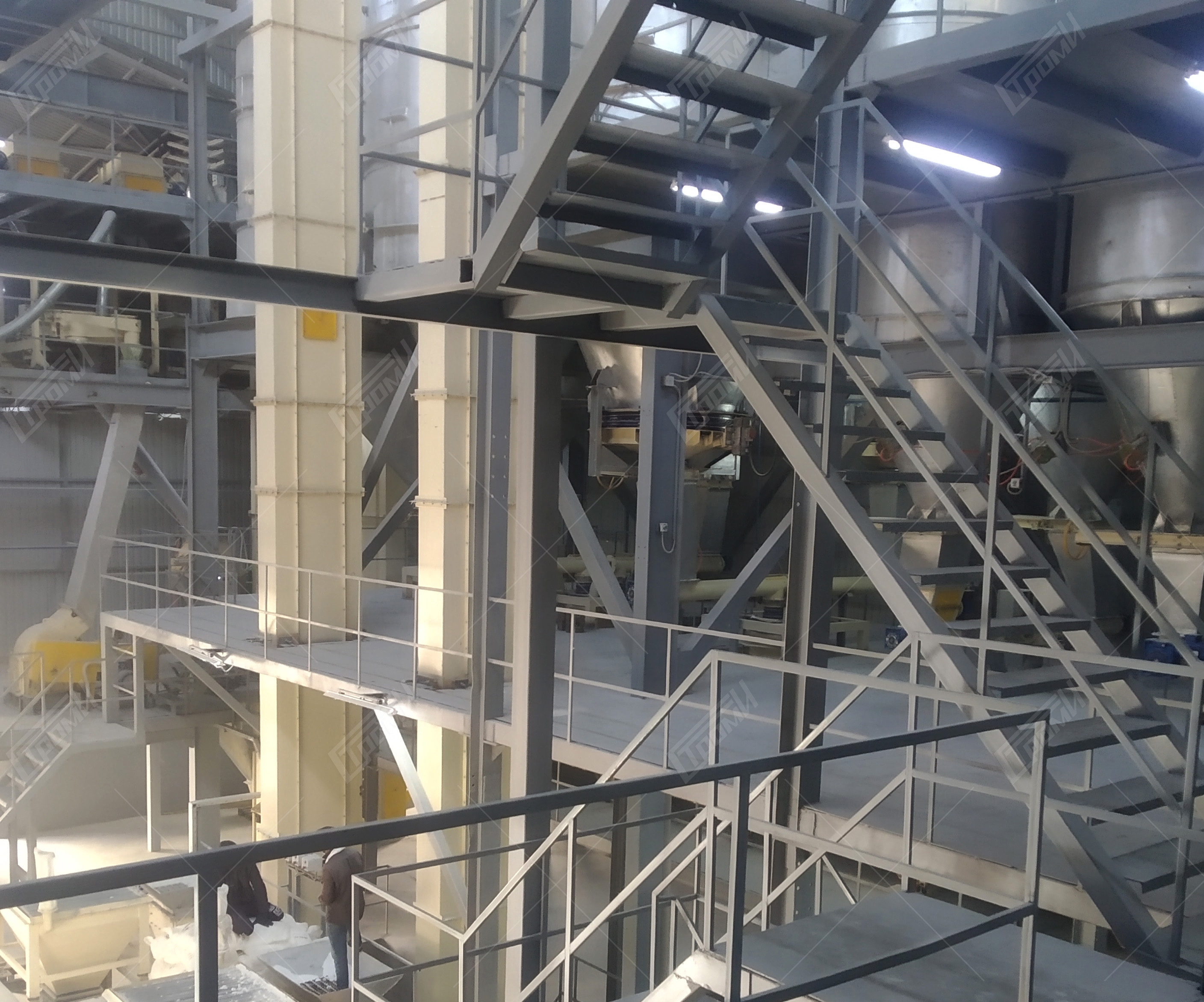

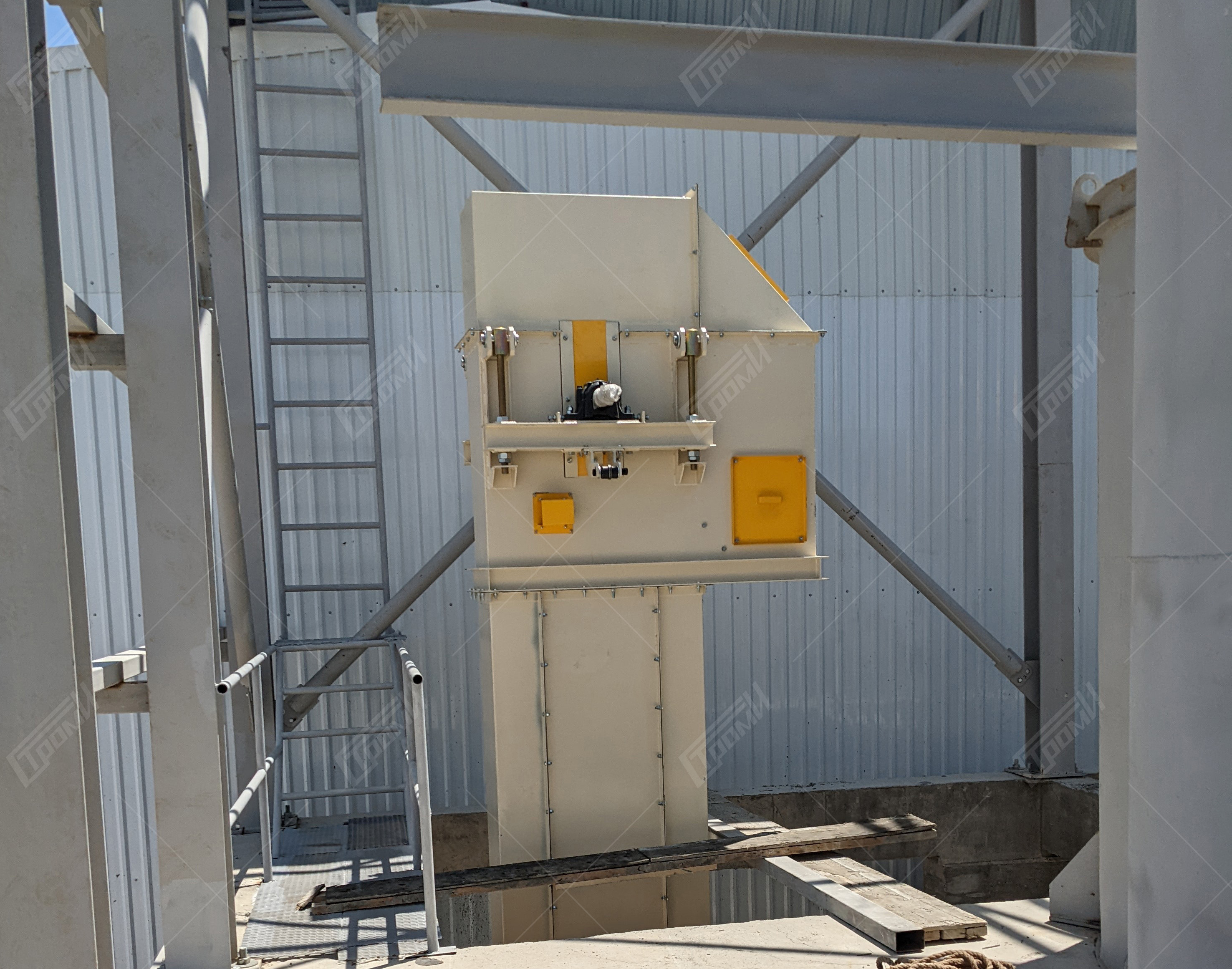

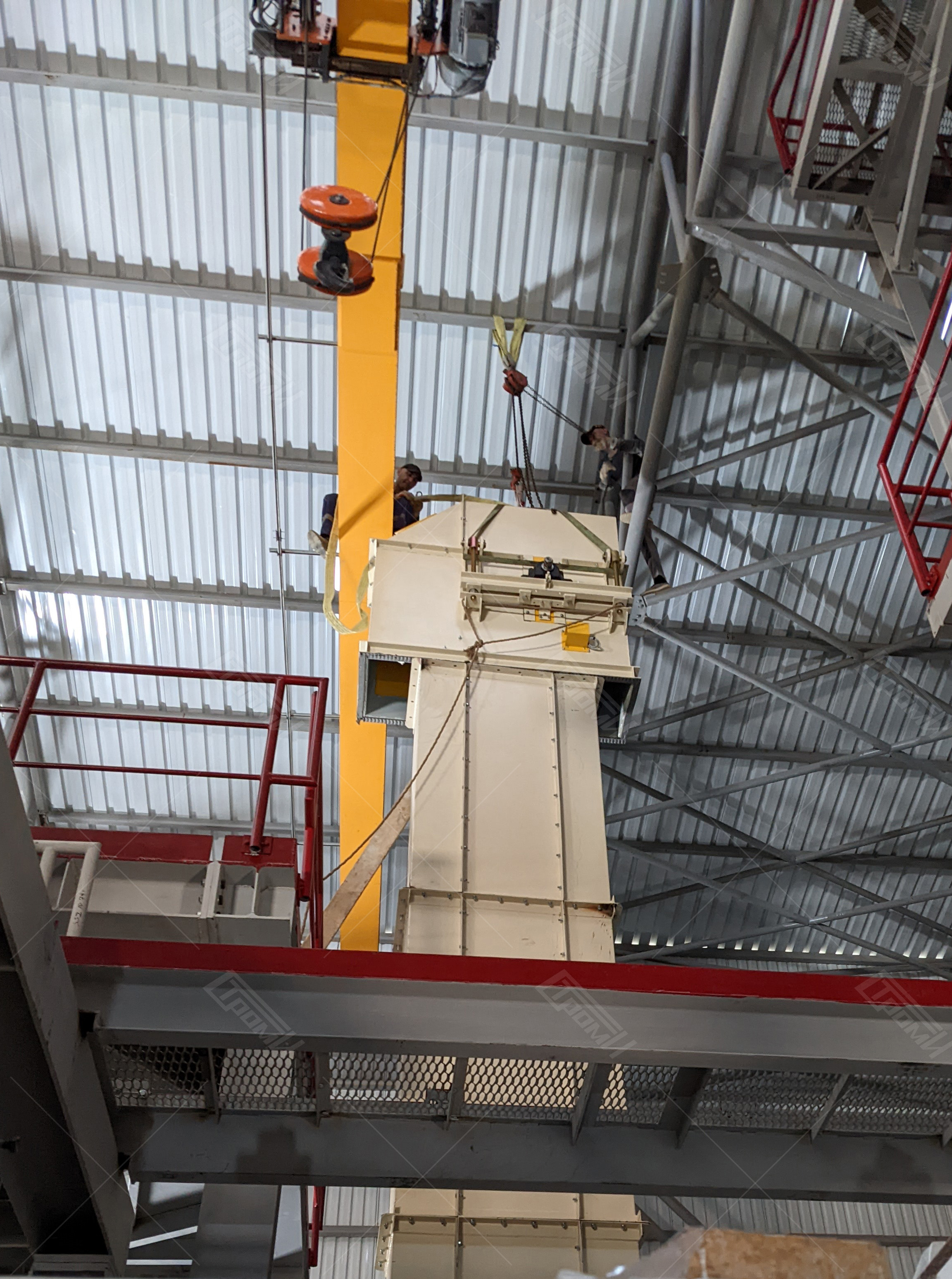

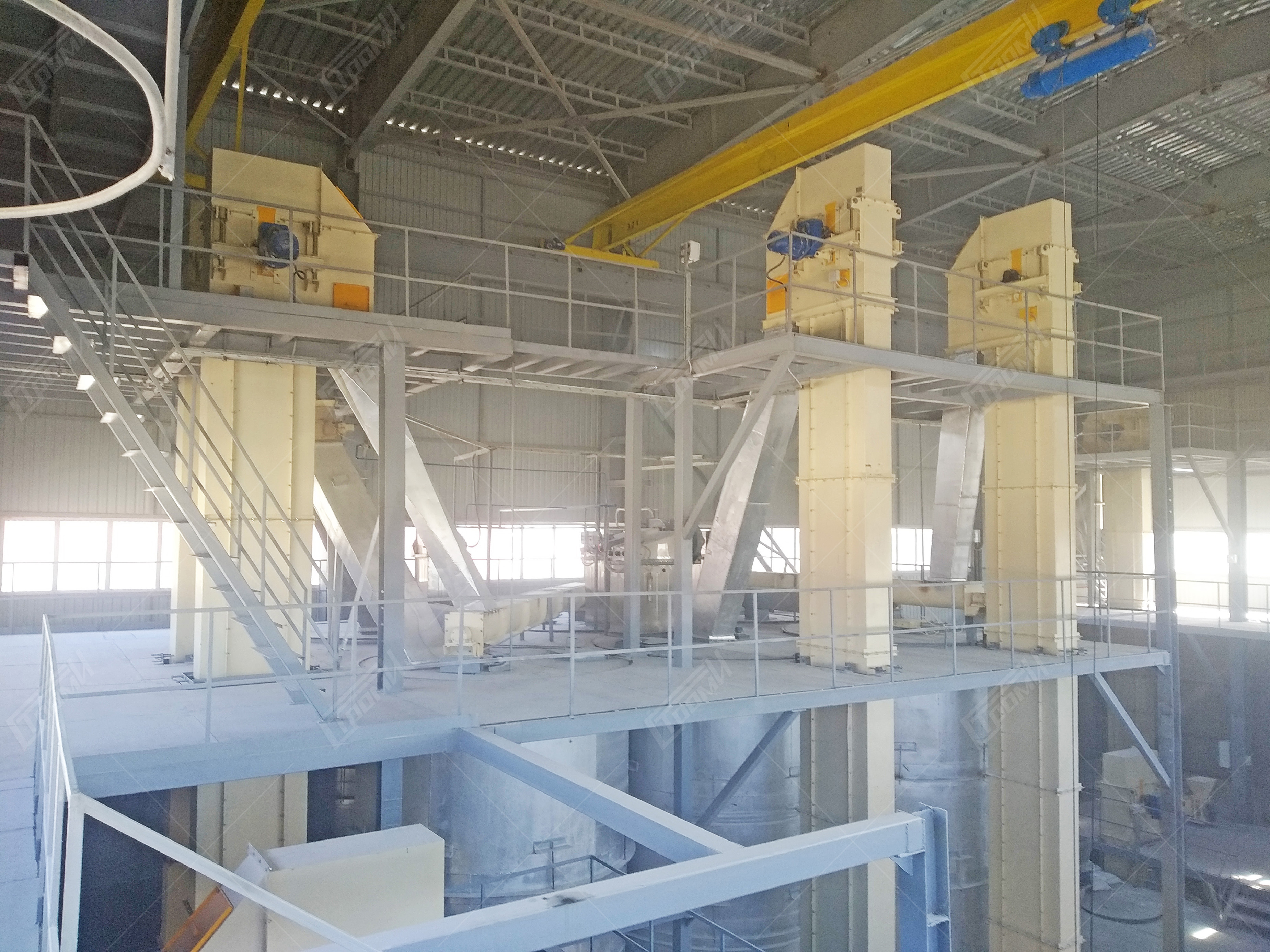

GALLERY
