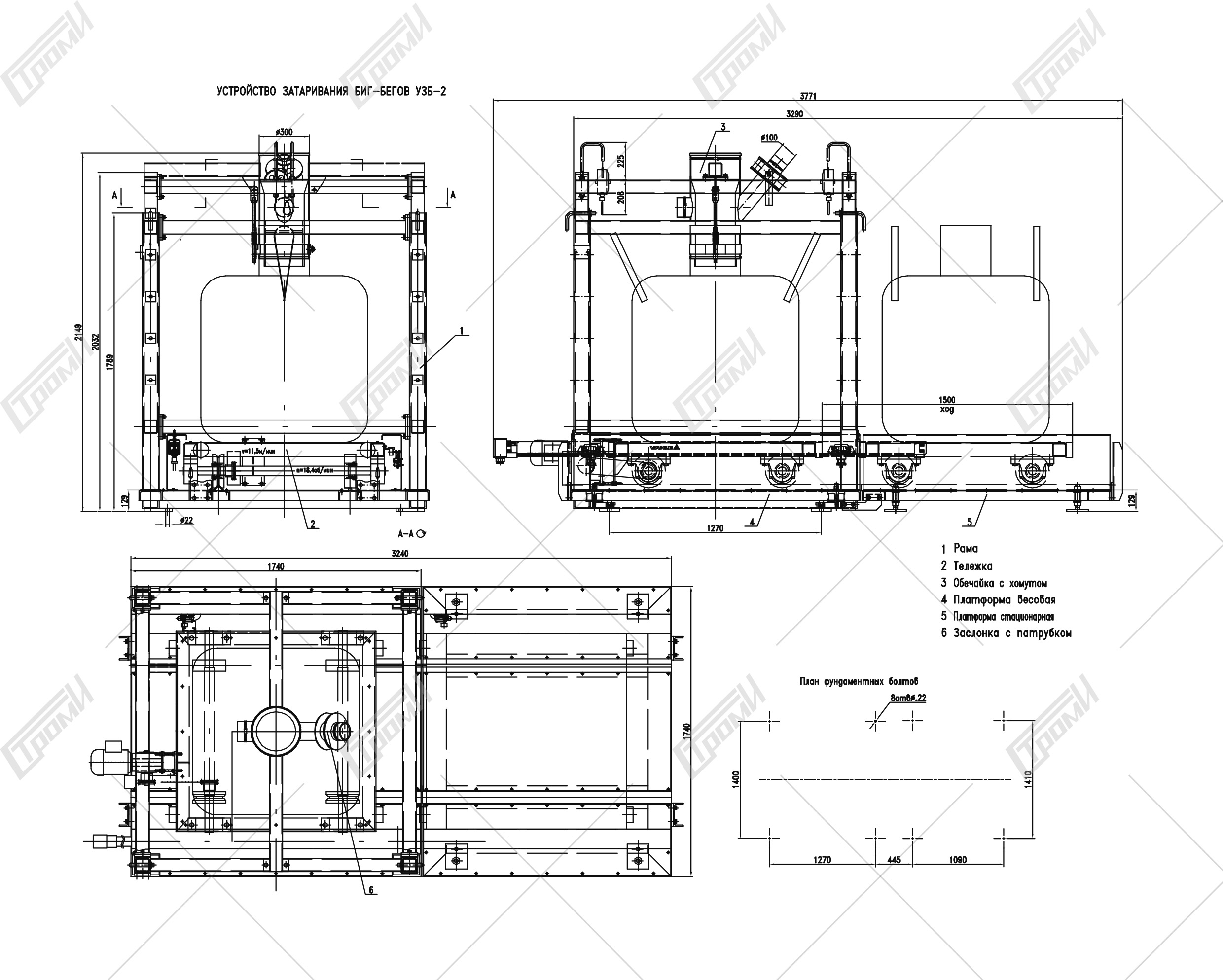

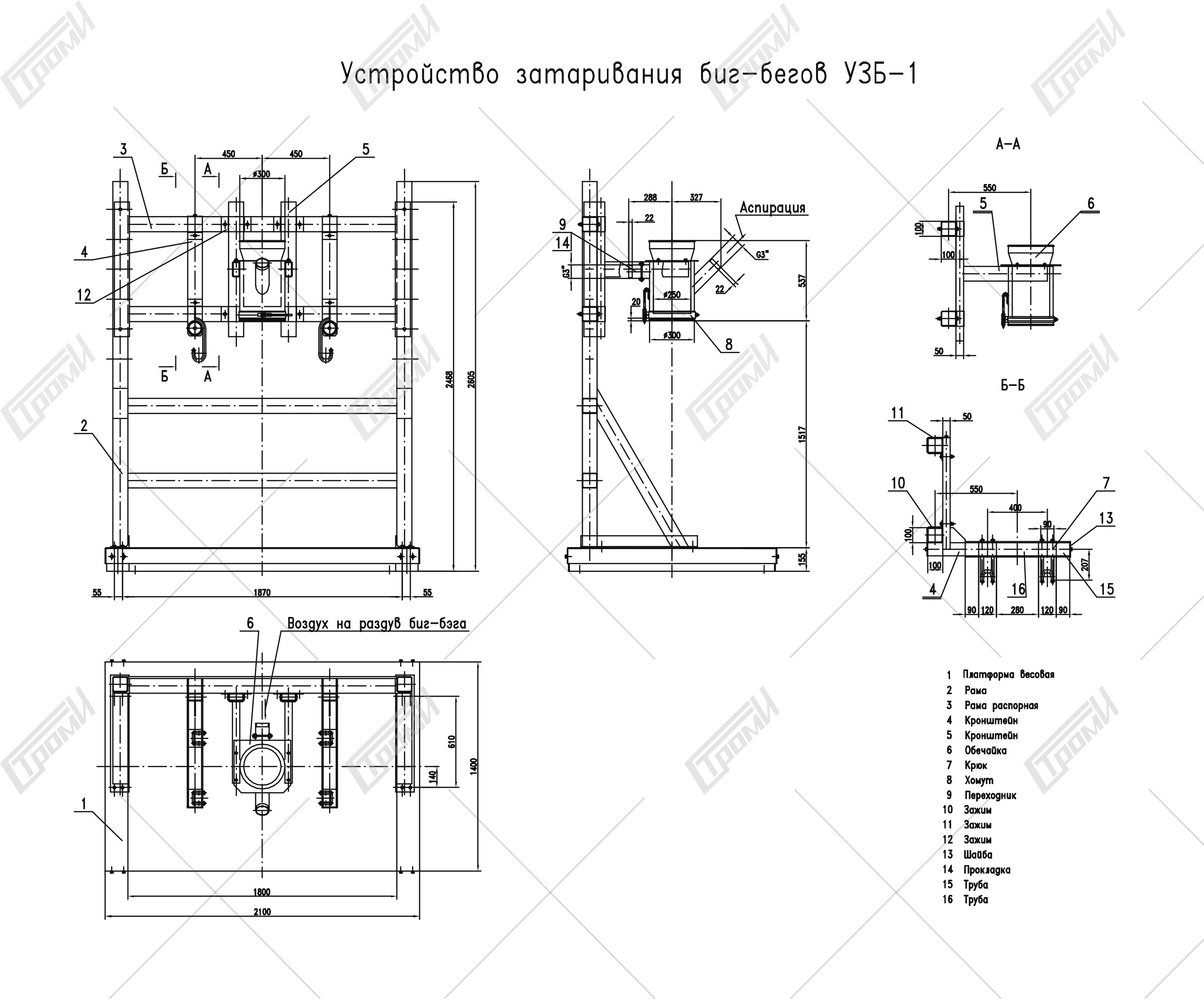

Loading stations UZB are used to fill big bags with dry, bulk materials, to weigh it in semi-automatic mode and supply bags into the area available for their further transportation. In UZB-1, the big bag is installed directly on the tensometric weighing platform. In UZB-2, the big bag is installed on an electrically driven trolley, which moves from the position of weight measurement to the position of filled big bag removal. Conditions of the big bag loading station UZB operation: ambient temperature 5-40°, relative air humidity 90%, atmosphere pressure 84-106,7 kPa.
Parameters | UZB – 1 | UZB – 2 |
---|---|---|
The biggest limit of dosing, kg | 2000 | 2000 |
The lowest limit of dosing, kg | 500 | 500 |
Limit of permissible variations of the dose weight mean value, kg | 1,0 | 1,0 |
Strain gage transducer type | BSA – 1 | BSA – 1 |
Number of strain gage transducers | 4 | 4 |
Control | electrical | |
Control panel supply voltage, V | 380 ± 38 | |
Frequency, Hz | 50 ± 1 | |
Consumed power, kW | 0,75 | |
Gear motor | W75 U-50 S2 B3 M2SB6 230/400-50 IP55 CLF N (0,75 kW) | |
Double row chain transmission | t = 12,75 mm, i = 1 | |
Maximal trolley speed, m/min | 11,5 | |
Dimensions (L x W x H), mm | 1400х2100х2605 | 3771х1740х3149 |
Weight, kg | 550 | 750 |
