Control unit BU – 1053
USING

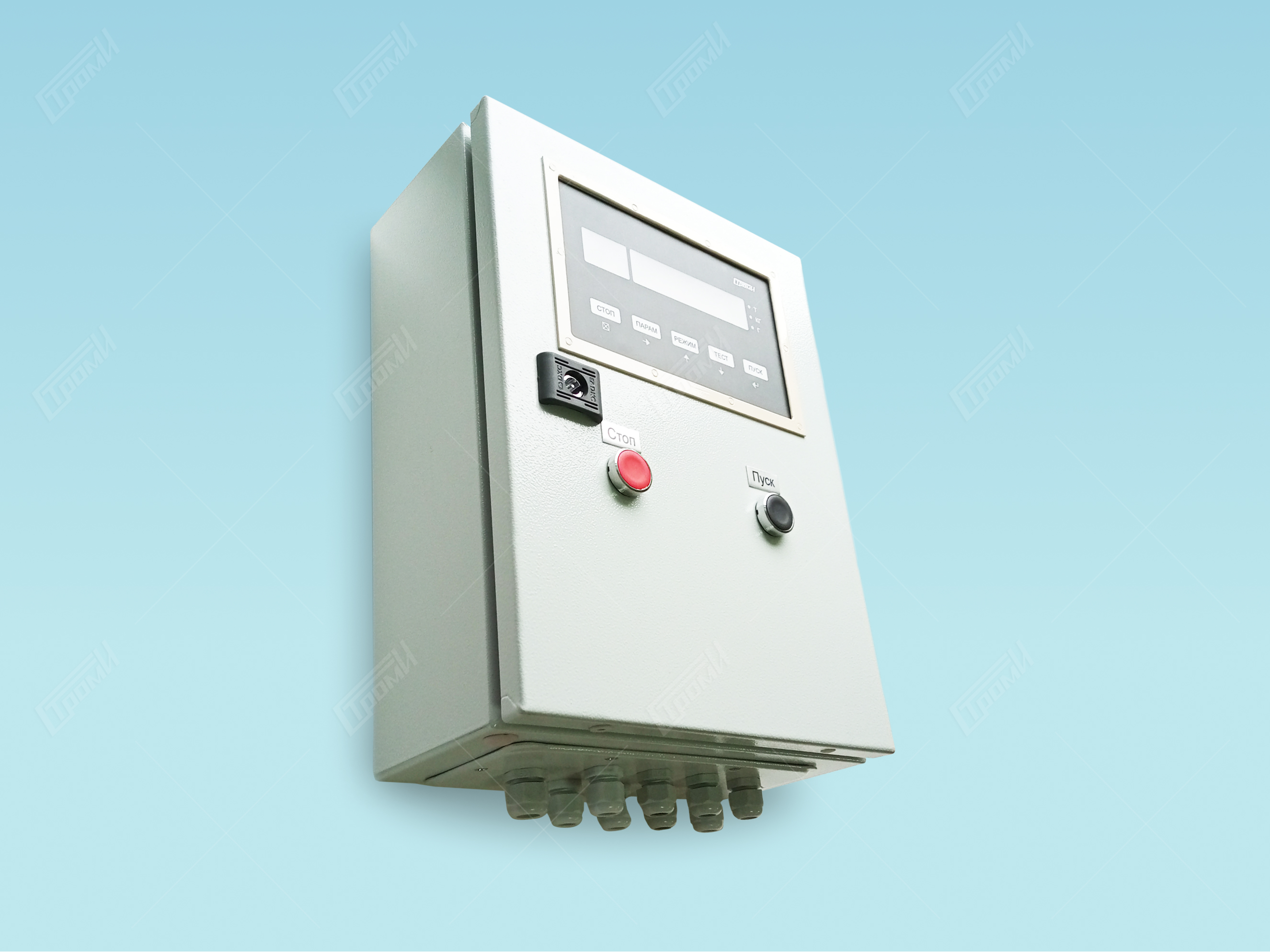

Control unit BU-1053 is designed to be used as a measuring converter for controlling continuous-action differential feeders. The differential feeder consists of a hopper installed on strain gauge sensors for continuous weight measurement and a feeder with adjustable output, unloading material from the hopper, as well as a discrete sensor signaling the loading of material into the hopper. During periods when no material is being loaded into the hopper, the unit maintains a set output rate, and during loading, it maintains a constant control signal on the feeder.
technical specifications
| Parameters | Values |
|---|---|
| Number of differential inputs for connected sensors | 4 |
| Connection diagram for strain gauge sensors | 6 or 4 wire |
| Sensor power supply voltage, V | 5 |
| Signal conversion error | 0,05% |
| Main range of working transfer coefficients for connected strain gauges, mV/V | 0,9 – 3,6 |
| Analog outputs / Normalized range, – / mA | 2/4 – 20 |
| Digital outputs / Output power supply voltage / Maximum current, – / V / mA | 3 thyristors, 5 transistors /~220, =24/1000,50 |
| Digital inputs / Input power supply voltage, – / V | 8/24 |
| Interface / Protocol | RS – 485, RS422 isolated / Modbus |
| Power supply, V/A | ~220 / 0,06 |
| Dimensions, mm | 300х400х150 |
