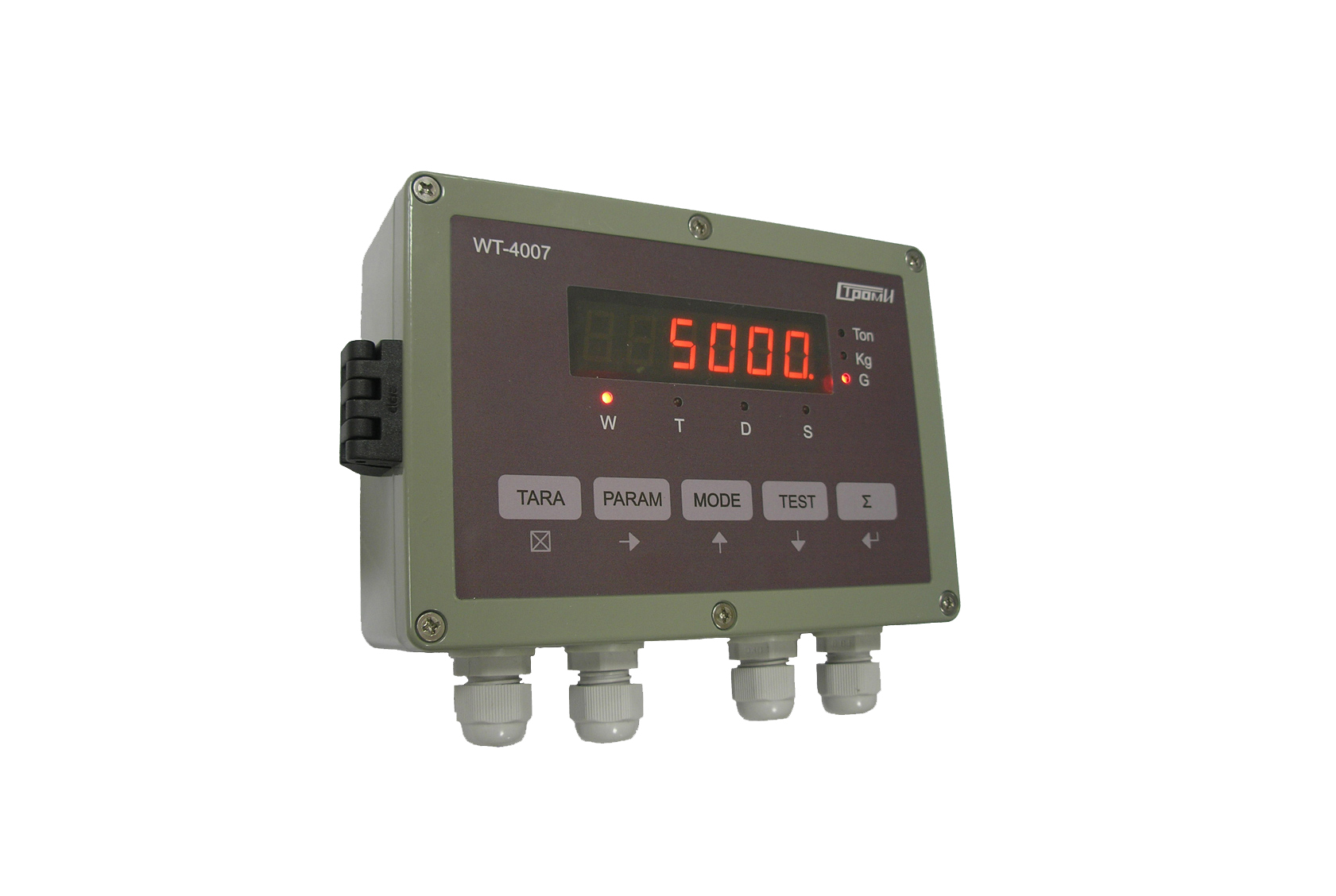

Weighing indicator WT – 4007
USING
This device is designed to measure weight from a load cell with the ability to fix the results of individual measurements and accumulate the sum of fixed measurements. The device can transmit the current weight, fixed values with the time and date of measurement, and the total weight to a computer via the Modbus protocol.
technical specifications
| Parameters | Values |
|---|---|
| Number of connectable load cells | 4 |
| Sensor power supply voltage, V | 5 |
| Maximum power consumption of strain gauge sensors, mA | 100 |
| Internal resolution of the CAN | 1/16000000 |
| External resolution | 1/64000 |
| Signal conversion error | 0,003% |
| Measurement frequency, Hz | 65 |
| Interface / Protocol | RS-485 isolated / Modbus |
| Power supply, V/A | 220/0,06 |
| Dimensions, mm | 171x121x56 |
