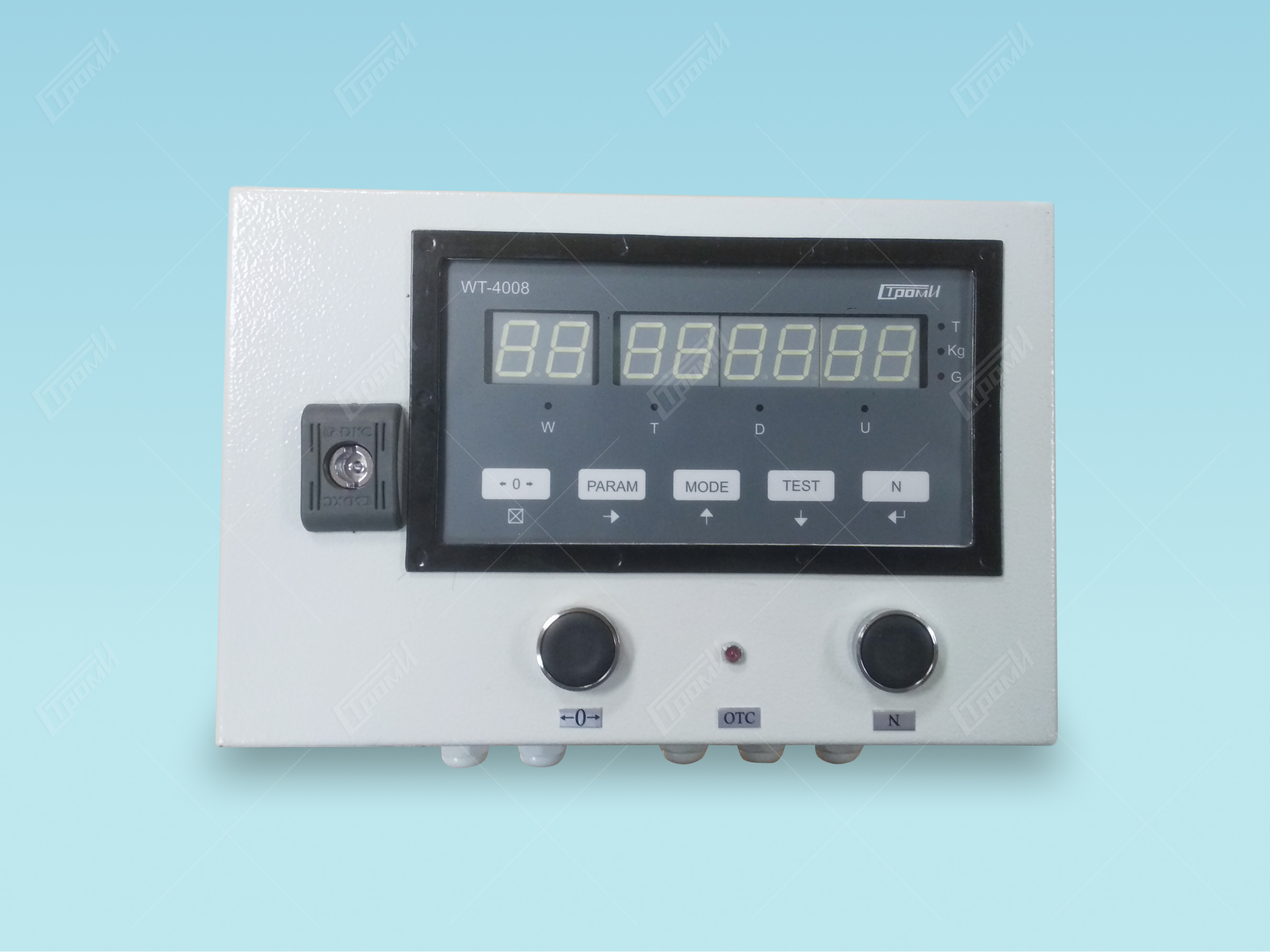

The WT-4008 weighing indicator is designed to measure analog signals from load cells, convert them to digital code, and display them on a digital indicator. The main application area of the indicator is working with manual weighing carts or weighing platforms. The indicator provides the ability for additional filtering of measurements, maintaining the process of dosing several components from numbered hoppers 1 to max N and unloading them into a receiving hopper with number 00, accumulating information on dosing results, and transmitting it via the Modbus protocol. This information allows for monthly and final reports on the material consumption of each hopper and the amount of mixture obtained. To obtain reports from the device, a software distribution is provided. Operating conditions are between -10° and 40°.
Parameters | Values |
---|---|
Number of connectable load cells | 4 |
Sensor power supply voltage, V | 10 |
Maximum power consumption of strain gauge sensors, mA | 100 |
Internal resolution of the CAN | 1/16000000 |
External resolution | 1/64000 |
Signal conversion error | 0,003% |
Number of digits in the main indicator/indicator of the hopper number | 6 / 2 |
Measurement frequency, Hz | 12,5 |
Interface / Protocol | RS-485 isolated / Modbus |
Power supply, V/A | 220/0,06 |
Dimensions, mm | 300x195x50 |
