Sorting machine is applied for division of granular small-grained materials of low and medium abrasive ability with bulk weight till 2000 kg/m3 according to size classes on a sieve with related mesh size. Sorting machines С-1-1000 divide the material into two size classes, sorting machine С-2-1000 divide the material into three size classes and include different number of sieving areas. Real capacity depends on characteristics of input materials, standard size of sieve area and specifies during equipment order. Sieve mesh area size also specifies during equipment order, columns are filled before delivery of equipment.

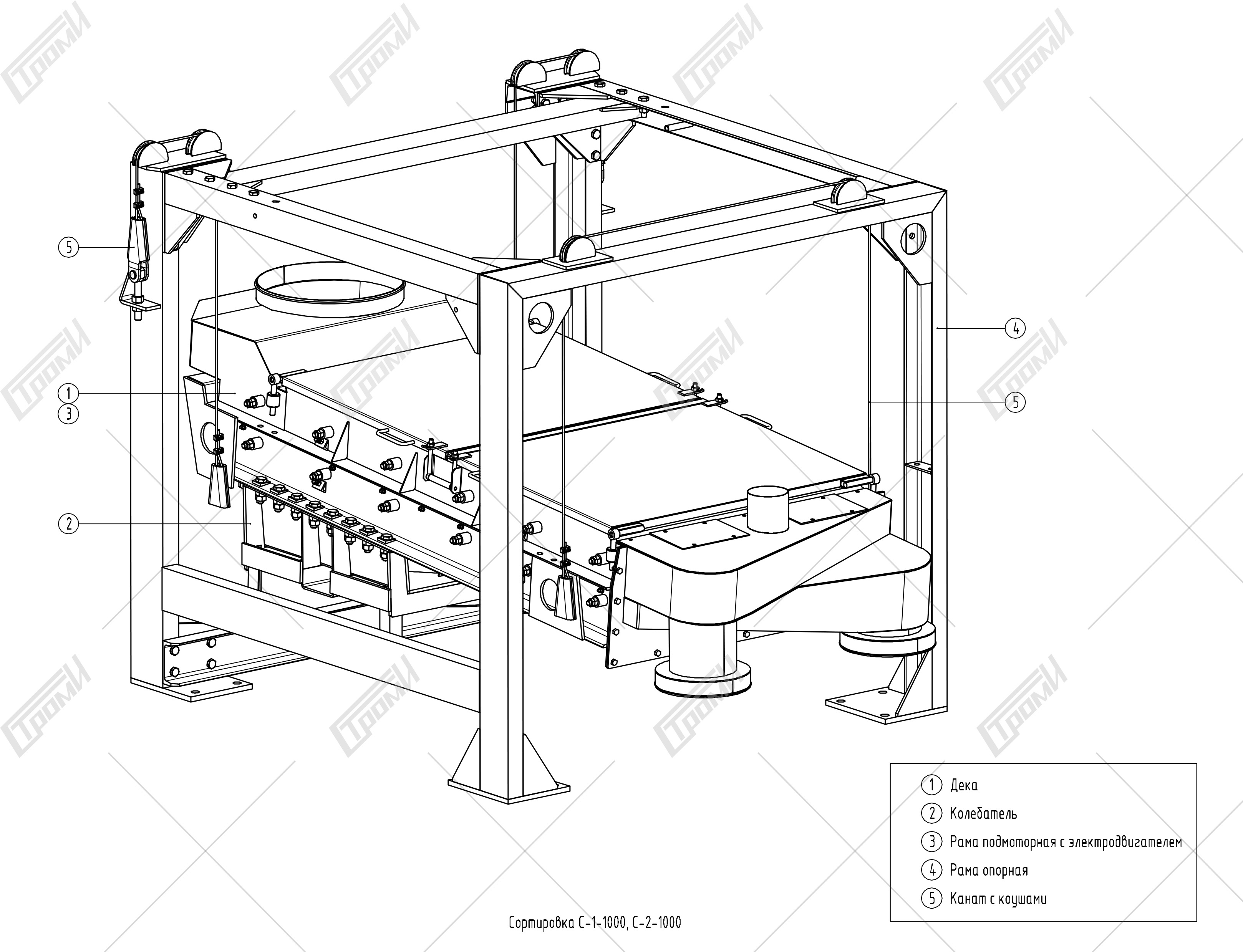

Sorting machine С-1000 consist of the following parts:
– deck with one or two sieve level
– vibrator
– sub-frame with electric motor, installed on the deck
– mounting frame
– ropes with dead-eye to hang vibrating parts of sorting manchine
Sorting machines are devices of vibrating type with circular trajectory. Because of deck inclination to the horizon, sieve material moves along a spiral path. This provides an intensive classification of the material. Coarse grains remain on the sieve and then move into the discharge sleeves of retained product, while small grains pass through the sieve openings and move into the discharge sleeves of throughs.
The tension of the sieve cloth is directed perpendicularly to the sieve product by means of screw tensioners.
Debalance is used as a vibration exciter, which is driven by asynchronous electric drive through vee belt transmission. Material handling to sorting machine and aspiration of interior space is effected with industrial tubes (goffer sleeve) and clamps.
Parameters | Sorting machine С-1-1000 | Sorting machine С-2-1000 | Sorting machine С-2000 |
---|---|---|---|
Capacity, t/hour, max | 25 | 25 | 90 |
Sieve mesh size, mm | according to task order | according to task order | according to task order |
Number of sieve levels | 1 | 2 | 2 |
Sieving area of the first sieve level, m2, max | 1,6 | 1,6 | 7,8 |
Sieving area of the second sieve level, m2, max | — | 1,6 | 5,8 |
Deck inclination° | 5 ± 30 | 5 ± 30 | 7 ± 30 |
Amplitude of vibration, mm | 30 ± 2 | 30 ± 2 | 30 ± 3 |
Installed capacity, kW | 1,5 | 1,5 | 4 |
Vibration frequency, rpm | 240 | 240 | 240 ± 10 |
Climatic version defined in the standard GOST 15150 (with location under cover in industrial premises at an ambient temperature of -45° to 40°) | Y2 | Y2 | Y2 |
Overall dimensions (L х W х H), mm | 2740х1900х1781 | 2740х1900х1781 | 4400х2900х2500 |
Mass of vibrating parts, kg | 1020 | 1080 | 2500 |
General mass, kg | 1367 | 1427 | 3420 |
